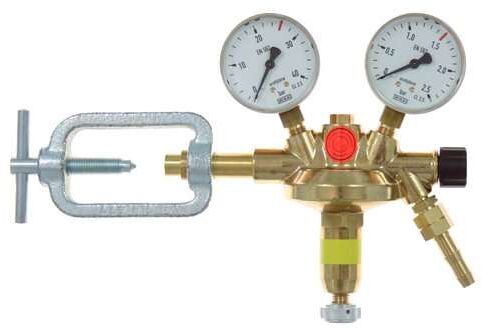

Cylinder pressure reducer Vulkan F10/25 Acetylene DIN 477-1, 0 - 1.5 bar according to ISO 2503, Class 2, single-stage design, tested for burnout safety with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 25 bar. Output pressure: adjustable 0 - 1.5 bar. Maximum output: 8.5 Nm³/h at 1.5 bar outlet pressure. Inlet: Bracket according to DIN 477-1 No. 3. Outlet (optional special outlet): G3/8LHk x 9 mm nozzle according to EN 560. Inlet pressure gauge: 0 - 40/26 bar. Outlet pressure gauge: 0 - 2.5/1.5 bar. Width x Height x Depth: 290 x 190 x 75 mm. NOTE: Cylinder pressure reducers are manufactured according to ISO 2503 and not for use with ISO collars. 14114 suitable/approved! This cylinder pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard: G3/8 LHk x 9 mm nozzle according to EN 560 Optional: Order number Outlet screw connection 209000 Hose nozzle G3/8" LHk x 9mm 209000-815 Hose nozzle G3/8" LHk x 6mm 209000-838 Hose nozzle G3/8" LHk x 4mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
8,5 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 40 Bar
Inlet Connection:
DIN 477-1 No. 3 (Clamping brackets)
Inlet pressure:
20 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass
Outlet Connection:
Hose nozzle G 3/8" LHk x 6 mm
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Acetylene (C2H2)
W (Width) x H (Height) x D (Depth):
290x190x75mm.
Outlet pressure:
1,5Bar
