Cylinder regulator CO 0-60 bar Vulkan F60/200 Effect

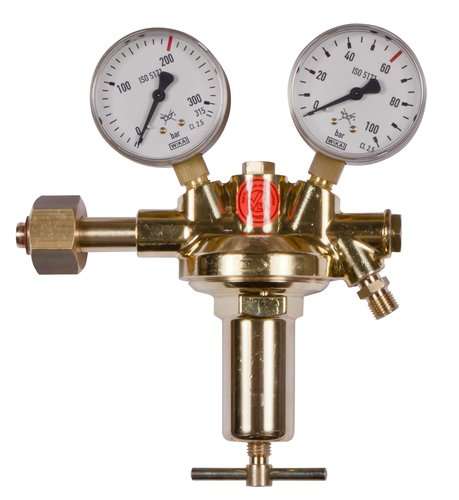

Vulkan F60/200 Effect cylinder pressure reducer for carbon monoxide (CO) DIN 477-1, 0-60 bar according to ISO 2503, single-stage design, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171, without shut-off valve, max. inlet pressure: 200 bar, outlet pressure: adjustable 0-60 bar, max. output: 140 Nm³/h air at 60 bar outlet pressure, inlet: 1" LH U-nut according to DIN 477-1 No. 5, outlet: G3/8 LHk according to EN 560, inlet pressure gauge: 0-315/200 bar, outlet pressure gauge: 0-100/60 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in, among other versions. following versions: Special outlet screw connection: Standard: - External thread G3/8" LHk according to EN560 Optional (surcharge): Order number Gas purity/Membrane Outlet screw connection 204376-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" LHk according to EN 560 204376-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" LHk according to EN 560 204376-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 204376-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 204376-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 204376-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm
