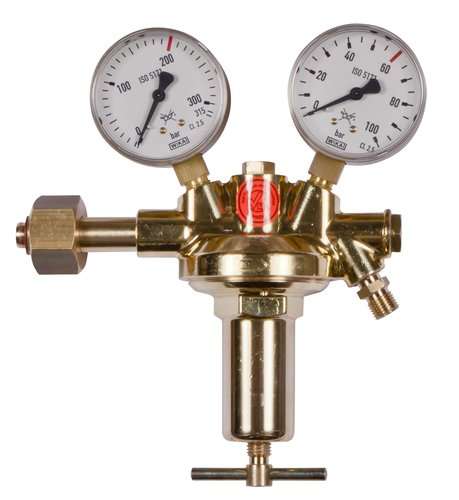

Cylinder regulator F60 Effect

Vulkan

Write a review

Type of Gas:

Regulation Type:

Inlet pressure (max):

Bar

Outlet pressure:

0 -

Bar

Gas Quality:

Flow rate:

Nm³/h

Inlet Connection:

Outlet Connection:

Material:

Ask a question

CODE: 207376-MM-002

Description
Features

Vulkan F60/200 Effect compressed air cylinder pressure reducer DIN 477-1, 0 - 60 bar according to ISO 2503, with pre-pressure compensation for constant back pressure under all working conditions, single-stage design, without shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0 - 60 bar adjustable, maximum output: 140 Nm³/h compressed air at 60 bar back pressure, inlet: G5/8RHaf A-screw according to DIN 477-1 No. 13, outlet (optional special outlet): G1/4RHk according to EN 560, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 100/60 bar, width x height x depth: 210 x 210 x 75 mm. This cylinder pressure reducer is available in the following, among others: Versions: Special outlet screw connection: Standard:- External thread G1/4" RHk according to EN560 Options: Article numberGas purityOutlet connection 207375-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/4" RHk according to EN560 207375-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 207375-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" RHk according to EN 560 207375-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 207375-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 207375-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 207375-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm

Type of Gas:

Synthetic air (mixture)

Product type:

Cylinder regulators

Regulation Type:

Single stage

Inlet pressure (max):

200 Bar

Outlet pressure:

0 - 60,00 Bar

Gas Quality:

up to 5.0 (laboratory gases / laser gases)

Flow rate:

140 Nm³/h

Inlet Connection:

External thread G3/8" RHk according to EN 560

Outlet Connection:

External thread G3/8" RHk according to EN 560

Application:

Automotive Industry
Chemical Industry
Cutting
Manufacturing Industry
Petrochemical Industry
Pharmaceutical Industry
Research & Development
Welding

Class (purpose):

Technical gases

Material:

Brass

Non-return valve:

Solenoid valve:

HP Gauge:

HP gauge scale:

0 to 315 Bar

LP Gauge:

LP gauge scale:

0 to 100 Bar

W (Width) x H (Height) x D (Depth):

210x210x75mm.
