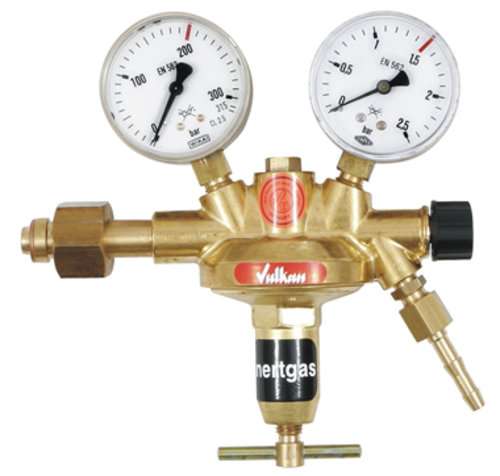

Cylinder regulator CO₂/Argon 0-1,5 bar Vulkan F15/200 Effect

Cylinder pressure reducer Vulkan F15/200 Effect Inert Gases DIN 477-1, 0 - 1.5 bar according to ISO 2503, with pre-pressure compensation for constant back pressure under all operating conditions, single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0 - 1.5 bar adjustable, maximum output: 8 Nm³/h compressed air at 1.5 bar back pressure. Inlet: W21.8x1/14 RH U-nut according to DIN 477-1 No. 6, outlet (optional special outlet): G1/4RHk x 6 mm nozzle according to EN 560, inlet gauge: 0 - 315/200 bar, outlet gauge: 0 - 2.5/1.5 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item number Gas purity/membrane Outlet connection 206315 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 206315-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 206315-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 206315-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 206315-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 206315-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 206315-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 206315-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 206315-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 206315-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 206315-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 206315-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 206315-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 206315-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 206315-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 206315-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 206315-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 206315-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 206315-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 206315-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 206315-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 206315-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
