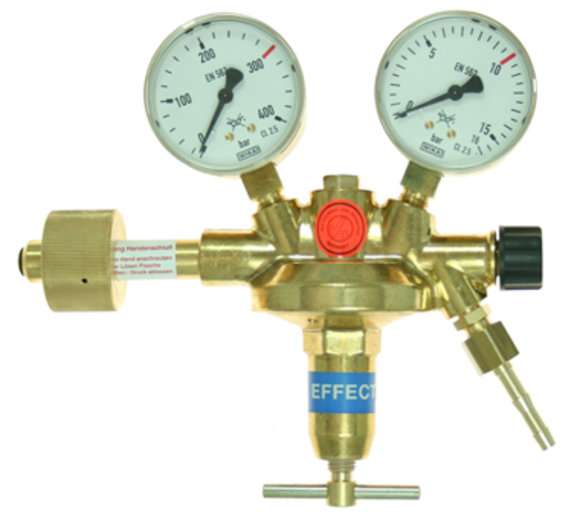

Cylinder regulator CO₂/Argon 0-20 Nl Vulkan F10/300 Effect

Vulkan F10/300 Effect CO2/Argon cylinder pressure reducer DIN 477-5, 0-20 Nl/min. according to ISO 2503, Class 3, with pre-pressure compensation for constant back pressure under all operating conditions, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 300 bar. Output pressure: 0-20 Nl/min. (0-10 bar). Output: 0-20 Nl/min. adjustable. Inlet: W30x2RH U-nut according to DIN 477-5 No. 54. Outlet (optional special outlet): G1/4RHk x 6 mm hose nozzle according to EN 560. Inlet pressure gauge: 0-400/300 bar. Outlet pressure gauge: 0-20 Nl/min. Double scale Ar/CO2 Width x Height x Depth: 210 x 230 x 75 mm Important note for 300 bar pressure regulators - Please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, Section 3: Difference between 200 bar and 300 bar pressure regulators. This cylinder pressure reducer is available in the following versions: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item numberGas purity/membraneOutlet connection 326105 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 326105-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 326105-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 326105-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 326105-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 326105-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 326105-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 326105-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 326105-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 326105-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 326105-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 326105-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 326105-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 326105-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 326105-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 326105-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 326105-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 326105-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 326105-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 326105-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 326105-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 326105-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
