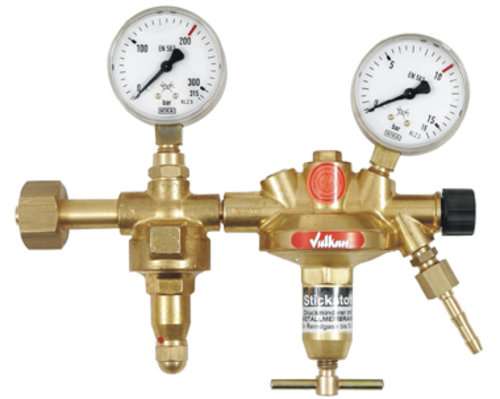

Cylinder regulator Compressed air 0-1,5 bar Vulkan F15/2 200 Effect

Cylinder pressure reducer Vulkan F15/2 200 compressed air DIN 477-1, 0 - 1.5 bar according to ISO 2503, Class 3, two-stage design, TÜV type-tested in accordance with Pressure Equipment Directive 97/23/EC, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 1.5 bar adjustable. Maximum output: 8 Nm³/h air at 1.5 bar outlet pressure. Inlet: G5/8RH screw according to DIN 477-1 No. 13. Outlet: G1/4RHk x 6 mm nozzle according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 2.5/1.5 bar. Width x Height x Depth: 240 x 190 x 75 mm. Cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - hose nozzle G1/4" RHk x 6mm Options (surcharge): Item number Gas purity Outlet connection 207250 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 207250-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 207250-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 207250-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 207250-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 207250-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 207250-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 207250-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 207250-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 207250-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 207250-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 207250-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 207250-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 207250-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 207250-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 207250-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 207250-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 207250-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 207250-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 207250-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 207250-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 207250-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
