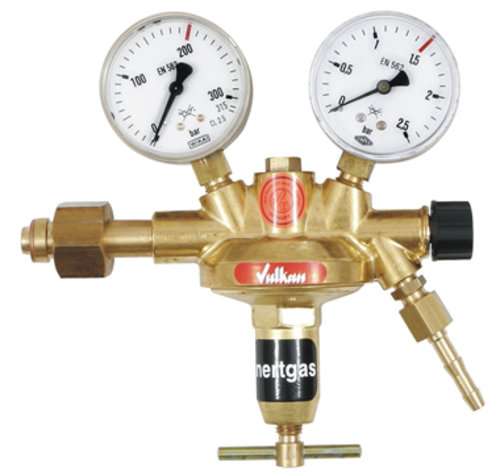

Cylinder regulator compressed air 0-1,5 bar Vulkan F15/300 Effect

Vulkan F15/300 Effect compressed air cylinder pressure reducer DIN 477-5, 0 - 1.5 bar with pre-pressure compensation for constant back pressure under all working conditions, single-stage design, with shut-off valve, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 300 bar, outlet pressure: 0 - 1.5 bar adjustable, maximum output: 8 Nm³/h compressed air at 1.5 bar back pressure. Inlet: W30x2RHk knurled nut according to DIN 477-5 No. 56, outlet (optional special outlet): G 1/4 RHk x 6mm nozzle according to DIN EN 560, inlet pressure gauge: 0 - 400 / 300 bar, outlet pressure gauge: 0 - 2.5 / 1.5 bar, width x height x depth: 210 x 190 x 75 mm. Important note for 300 bar pressure reducers - please Check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This cylinder pressure reducer is available in the following versions: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item numberGas purity/membraneOutlet connection 307315 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 307315-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 307315-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 307315-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 307315-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 307315-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 307315-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 307315-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 307315-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 307315-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 307315-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 307315-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 307315-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 307315-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 307315-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 307315-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 307315-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 307315-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 307315-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 307315-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 307315-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 307315-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
