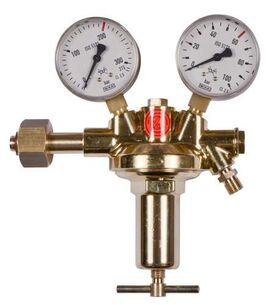

Cylinder regulator forming gas 0-60 bar Vulkan F60/200 Effect

Cylinder pressure reducer Vulkan F60/200 Effect forming gas DIN 477-1, 0 - 60 bar according to ISO 2503, single-stage design, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve, maximum inlet pressure: 200 bar, outlet pressure: adjustable 0 - 60 bar, maximum output: 140 Nm³/h air at 60 bar back pressure, inlet: W21.8 x 1/14 LH U-nut according to DIN 477-1 No. 1, outlet (optional special outlet): G3/8LHk according to EN 560, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 100/60 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is suitable for, among other things, Available in the following versions: Special outlet screw connection: Standard: - External thread G3/8" LHk according to EN560 Optional (surcharge): Order number Gas purity/Membrane Outlet screw connection 204384-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" LHk according to EN 560 204384-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" LHk according to EN 560 204384-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 204384-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 204384-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 204384-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm
