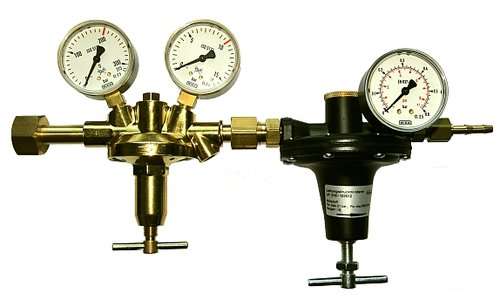

Vulkan F10/2 NP fuel gas cylinder pressure reducer DIN 477-1, 200 bar, 0 - 250 mbar
Standards & Design:
two-stage design, consisting of F10/200 with straight outlet and LP216, , 420904 fully assembled with safety gauges according to ISO 5171
according to DIN 477-1
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 200 bar
• Output pressure: 0 to 250 mbar, adjustable
• Inlet: W21
• Outlet: G3/8LHk x 9mm hose nozzle according to DIN EN 560
Dimensions:
Width x Height x Depth: 380 x 250 x 110 mm
Standards & Design:
two-stage design, consisting of F10/200 with straight outlet and LP216, , 420904 fully assembled with safety gauges according to ISO 5171
according to DIN 477-1
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 200 bar
• Output pressure: 0 to 250 mbar, adjustable
• Inlet: W21
• Outlet: G3/8LHk x 9mm hose nozzle according to DIN EN 560
Dimensions:
Width x Height x Depth: 380 x 250 x 110 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 1 (W 21.80 x 1/14 LH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 0,250 Bar
Material:
Brass
Outlet Connection:
G 3/8 LH x 9 mm (hose grommet)
Outlet pressure:
0,25 Bar
Product type:
Cylinder regulators
Regulation Type:
Double stage
Type of Gas:
Hydrogen (H2)
W (Width) x H (Height) x D (Depth):
380x250x110mm.
