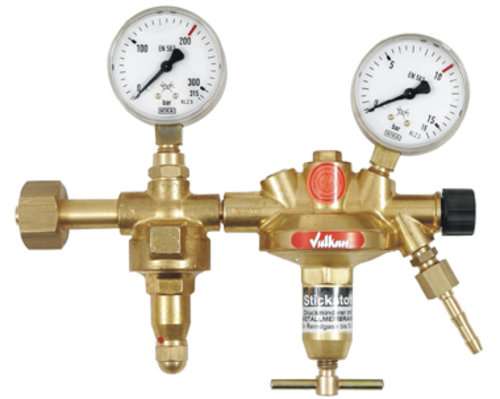

Cylinder regulator hydrogen 0-1,5 bar Vulkan F15/2 300 Effect

Cylinder pressure reducer Vulkan F15/2 300 fuel gases DIN 477-5, 0 - 1.5 bar according to ISO 2503, Class 3, two-stage design, TUV type-tested in accordance with Pressure Equipment Directive 97/23/EC with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Maximum inlet pressure: 300 bar. Output pressure: 0 - 1.5 bar adjustable. Maximum output: 8 Nm³/h air at 1.5 bar outlet pressure. Inlet: W30x2LH U-nut according to DIN 477-5 No. 57. Outlet: G3/8LHk x 9 mm nozzle according to EN 560. Inlet pressure gauge: 0 - 400/300 bar. Outlet pressure gauge: 0 - 2.5/1.5 bar. Width x Height x Depth: 240 x 190 x 75 mm Important note for 300 bar pressure regulators - Please check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- hose nozzle G3/8" LHk x 9mm Options (surcharge): Order numberGas purity/membraneOutlet screw connection 304250 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 304250-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 304250-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 304250-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" LHk according to EN 560 304250-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 304250-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 304250-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 304250-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 304250-2 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/8" 304250-4 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/4" 304250-MM-815 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 304250-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 304250-MM-814 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" LHk according to EN 560 304250-MM-838 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/2" LHk according to EN 560 304250-MM-6M for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) compression fitting VA 6mm 304250-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 304250-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 304250-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 304250-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 304250-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
