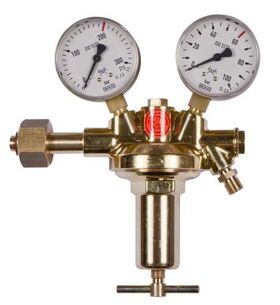

Cylinder regulator hydrogen 0-60 bar Vulkan F60/200 Effect

Vulkan F60/200 Effect cylinder pressure reducer for fuel gas, DIN 477-1, 0 - 60 bar, according to ISO 2503, single-stage design, with pre-pressure compensation for constant outlet pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171, without shut-off valve, max. inlet pressure: 200 bar, outlet pressure: adjustable 0 - 60 bar, max. output: 140 Nm³/h air at 60 bar outlet pressure, inlet: W21.8x1/14LH U-nut according to DIN 477-1 No. 1, outlet (optional special outlet): G3/8LHk according to EN 560, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 100/60 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is Available in the following versions, among others: Special outlet screw connection: Standard: - External thread G3/8" LHk according to EN560 Optional (surcharge): Order number Gas purity/Membrane Outlet screw connection 204375-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" LHk according to EN 560 204375-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" LHk according to EN 560 204375-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 204375-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 204375-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 204375-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm
