Cylinder regulator nitrogen 0-1,5 bar Vulkan F15/200 Effect

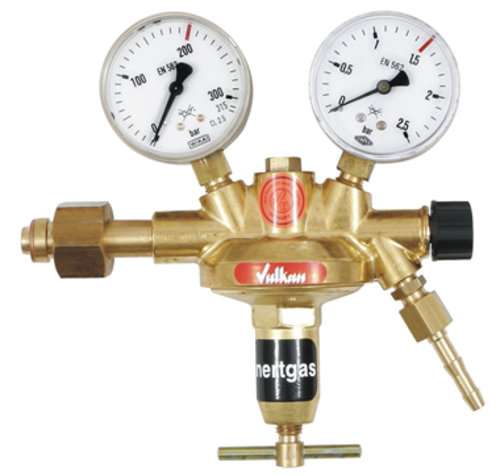

Vulkan F15/200 Effect Nitrogen cylinder pressure reducer DIN 477-1, 0 - 1.5 bar with pre-pressure compensation for constant back pressure under all working conditions, single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0 - 1.5 bar adjustable, maximum output: 8 Nm³/h compressed air at 1.5 bar back pressure. Inlet: W 24, 32 x 1/14 RH U-nut according to DIN 477-1 No. 10, outlet (optional special outlet): G1/4 RHk x 6 mm nozzle according to EN 560, inlet gauge: 0 - 315/200 bar, outlet gauge: 0 - 2.5/1.5 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available, among others. in the following versions: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item numberGas purity/membraneOutlet connection 203315 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 203315-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 203315-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 203315-870 for Technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 203315-838 For technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 203315-6M For technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 203315-8M For technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 203315-10M For technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 203315-12M For technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 203315-2 For technical gases up to 4.5, with standard membrane, compression fitting VA 1/8" 203315-4 for technical gases up to 4.5, with standard diaphragm compression fitting VA 1/4" 203315-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G1/4" RHk x 6mm 203315-MM-812 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" RHk x 9mm 203315-MM-800 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/4" RHk according to EN560 203315-MM-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" RHk according to EN 560 203315-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 203315-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203315-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 203315-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 203315-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 203315-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 203315-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
