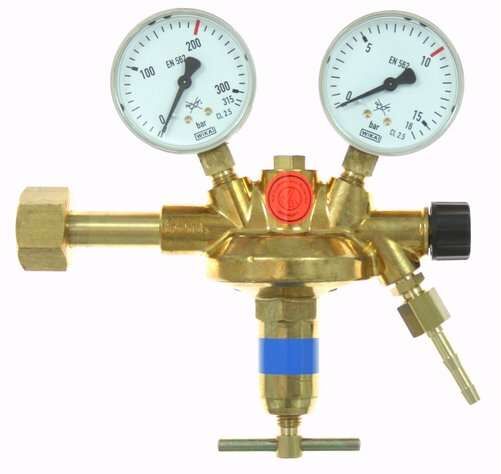

Vulkan F10/200 nitrogen cylinder pressure reducer DIN 477-1, 0-10 bar
Standards & Design:
according to ISO 2503, Class 3, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve
according to DIN 477-1 No
according to EN 560
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 200 bar
• outlet pressure
• Output pressure: 0-10 bar
• Inlet: W 24
• Outlet: G 1/4 RHk x 6 mm hose nozzle according to EN 560
• Inlet pressure gauge: 0-315/200 bar
• Outlet pressure gauge: 0-16/10 bar
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm
Standards & Design:
according to ISO 2503, Class 3, single-stage design, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve
according to DIN 477-1 No
according to EN 560
Functional elements:
• shut-off valve
Technical data:
• Maximum inlet pressure: 200 bar
• outlet pressure
• Output pressure: 0-10 bar
• Inlet: W 24
• Outlet: G 1/4 RHk x 6 mm hose nozzle according to EN 560
• Inlet pressure gauge: 0-315/200 bar
• Outlet pressure gauge: 0-16/10 bar
Dimensions:
Width x Height x Depth: 210 x 230 x 75 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
48 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 10 (W 24.32 x 1/14 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 16 Bar
Material:
Brass
Outlet Connection:
G 1/4 RH x 6 mm (hose grommet)
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
210x230x75mm.
