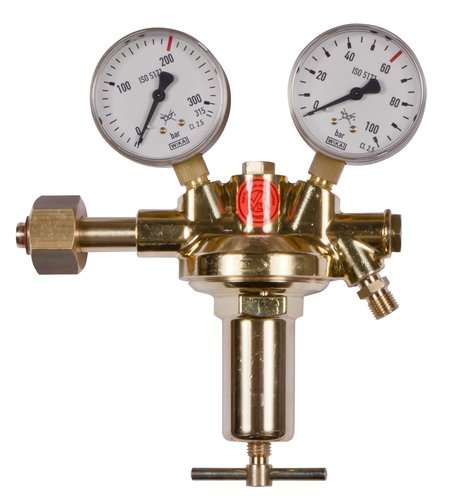

Cylinder regulator nitrogen 0-60 bar Vulkan F60/200 Effect

Cylinder pressure reducer Vulkan F60/200 Effect nitrogen DIN 477-1, 0 - 60 bar according to ISO 2503, with pre-pressure compensation for constant back pressure under all working conditions. Single-stage design, with safety pressure gauges according to DIN EN ISO 5171, without shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 60 bar adjustable. Maximum output: 140 Nm³/h compressed air at 60 bar back pressure. Inlet: W 24.32x1/14 RH U-nut according to DIN 477-1 No. 10. Outlet (optional special outlet): G1/4RHk according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 100/60 bar. Width x height x depth: 210 x 210 x 75 mm. This cylinder pressure reducer is suitable for, among other things, Available in the following versions: Special outlet screw connection: Standard: - External thread G1/4" RHk according to EN560 Options: Item number Gas purity Outlet connection 203375-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G1/4" RHk according to EN560 203375-MM-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G3/8" RHk according to EN 560 203375-MM-800 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G1/2" RHk according to EN 560 203375-MM-6M ​​for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) Compression fitting VA 6mm 203375-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 203375-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 203375-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm
