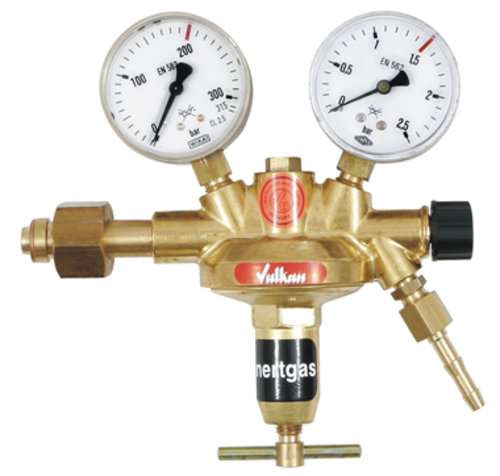

Vulkan F15/100 Effect Nitrous Oxide Cylinder Pressure Reducer DIN 477-1, 0-1.5 bar with pre-pressure compensation for constant
Standards & Design:
single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
according to DIN 477-1 No
according to EN 560, inlet gauge: 0-160/100 bar, outlet gauge: 0-2
Functional elements:
• shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
Technical data:
• maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
• outlet pressure under all operating conditions, single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
• output: 8 Nm³/h compressed air at 1
• Inlet: G3/8 RH U-nut according to DIN 477-1 No
• Outlet: G1/4 RHk x 6 mm nozzle according to EN 560, inlet gauge: 0-160/100 bar, outlet gauge: 0-2
Dimensions:
width x height x depth: 210 x 190 x 75 mm
Standards & Design:
single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
according to DIN 477-1 No
according to EN 560, inlet gauge: 0-160/100 bar, outlet gauge: 0-2
Functional elements:
• shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
Technical data:
• maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
• outlet pressure under all operating conditions, single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 100 bar, adjustable outlet pressure: 0-1
• output: 8 Nm³/h compressed air at 1
• Inlet: G3/8 RH U-nut according to DIN 477-1 No
• Outlet: G1/4 RHk x 6 mm nozzle according to EN 560, inlet gauge: 0-160/100 bar, outlet gauge: 0-2
Dimensions:
width x height x depth: 210 x 190 x 75 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
8 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 160 Bar
Inlet Connection:
DIN 477-1 No. 11 (G 3/8 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass
Outlet Connection:
G 1/4 RH x 6 mm (hose grommet)
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Nitrous oxide (N2O)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
