Cylinder regulator oxygen 0-40 bar Vulkan F40/200 Effect

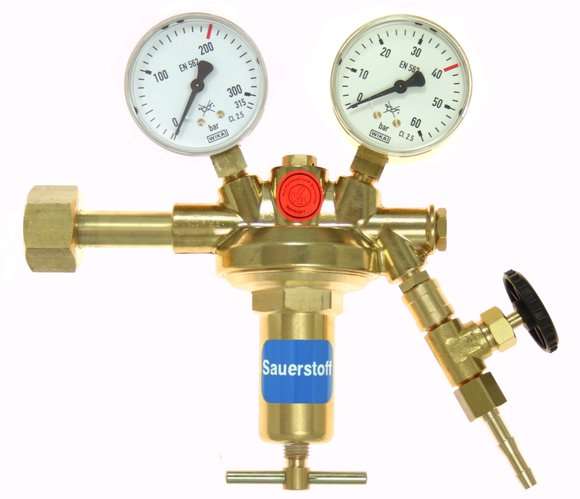

Vulkan F40/200 Effect Oxygen cylinder pressure reducer DIN 477-1, 0 - 40 bar according to ISO 2503, with pre-pressure compensation for constant outlet pressure under all working conditions. With metal diaphragm for pure gases up to 5.0. Single-stage design, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve and metal diaphragm. Maximum inlet pressure: 200 bar. Output pressure: 0 - 40 bar adjustable. Maximum output: 120 Nm³/h compressed air at 40 bar outlet pressure. Inlet: G3/4RH U-nut according to DIN 477-1 No. 9. Outlet: G1/4RHk x 6 mm nozzle according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 60/40 bar. Width x Height x Depth: 210 x 210 x 75 mm. Cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - Hose nozzle G1/4" RHk x 6mm Options (surcharge): Item numberGas purityOutlet connection 203005-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 203005-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 203005-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 203005-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560
