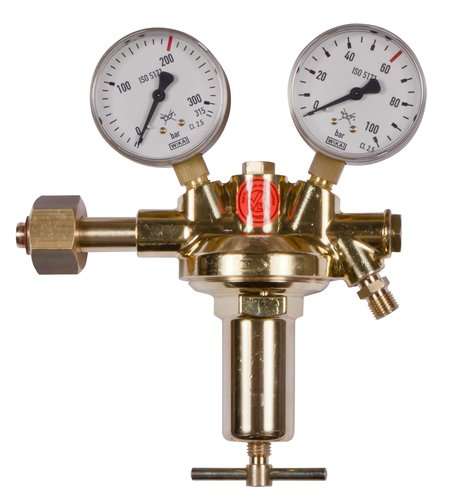

Cylinder regulator F60

Vulkan
Write a review
Contact us for a price
Bar
0 -
Bar
Nm³/h
Ask a question
218375-MM-002
Vulkan F60/200 oxygen cylinder pressure reducer DIN 477-1, 0 - 60 bar according to ISO 2503, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety gauges according to DIN EN ISO 5171, without shut-off valve, with metal diaphragm for pure gases up to 5.0, max. inlet pressure: 200 bar, outlet pressure: adjustable 0 - 60 bar, max. output: 140 Nm³/h air at 60 bar back pressure, inlet: G3/4 RH U-nut according to DIN 477-1 No. 9, outlet (optional special outlet): G1/4 RHk according to EN 560, inlet gauge: 0 - 315/200 bar, outlet gauge: 0 - 100/60 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard: - External thread G1/4" RHk according to EN560 Options: Item number Gas purity Outlet connection 218375-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/4" RHk according to EN560 218375-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 218375-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" RHk according to EN 560 218375-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 218375-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 218375-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 218375-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm
Type of Gas:
Argon (Ar)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 60,00 Bar
Gas Quality:
up to 5.0 (laboratory gases / laser gases)
Flow rate:
140 Nm³/h
Inlet Connection:
DIN 477-1 No. 6 (W 21.8 x 1/14 RH)
Outlet Connection:
External thread G3/8" RHk according to EN 560
Application:
  • Automotive Industry
  • Chemical Industry
  • Cutting
  • Manufacturing Industry
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Brass
HP Gauge:
HP gauge scale:
0 to 315 Bar
LP gauge scale:
0 to 100 Bar
W (Width) x H (Height) x D (Depth):
210x190x75mm.
