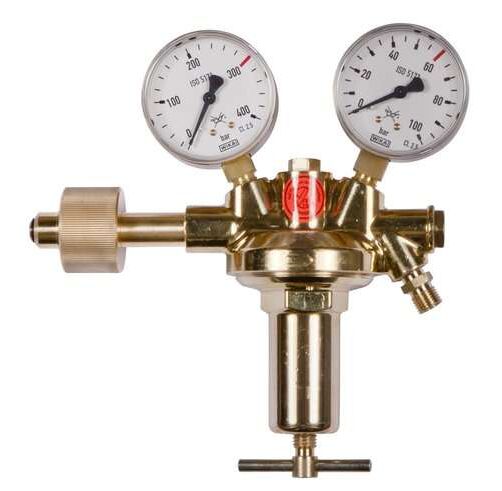

Vulkan F60/300 Effect Oxygen cylinder pressure reducer, DIN 477-5 according to ISO 2503, single-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171, without shut-off valve, with metal diaphragm for pure gases up to 5.0, max. inlet pressure: 300 bar, outlet pressure: adjustable 0 - 60 bar, max. output: 140 Nm³/h air at 60 bar back pressure, inlet: W30x2RH U-nut according to DIN 477-5 No. 59, outlet (optional probe outlet): external thread G1/4" RHk according to EN 560, inlet pressure gauge: 0 - 400/300 bar, outlet pressure gauge: 0 - 100/60 bar, width x height x depth: 210 x 190 x 75 mm. Important note For 300 bar pressure reducers - Please check your cylinder connection! Cylinder pressure reducers for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! See our following tutorial, Section 3: Difference between 200 bar and 300 bar pressure reducers. This cylinder pressure reducer is available in the following versions, among others: Special outlet screw connection: Standard: - External thread G1/4" RHk according to EN 560 Options: Item number Gas purity Outlet connection 318375-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) External thread G1/4" RHk according to EN 560 318375-MM-870 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" RHk according to EN 560 318375-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 318375-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 318375-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 318375-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 318375-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Laboratory gases
- laser gases
Flow rate:
140 Nm³/h
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 59 (W 30 x 2 RH 17.3 / 18.7)
Inlet pressure:
300 Bar
LP Gauge:
LP gauge scale:
0 to 100 Bar
Material:
Brass
Outlet Connection:
Compression fitting front 10 mm
Outlet pressure:
60 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Type of Gas:
Oxygen (O2)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
Outlet pressure:
60Bar
