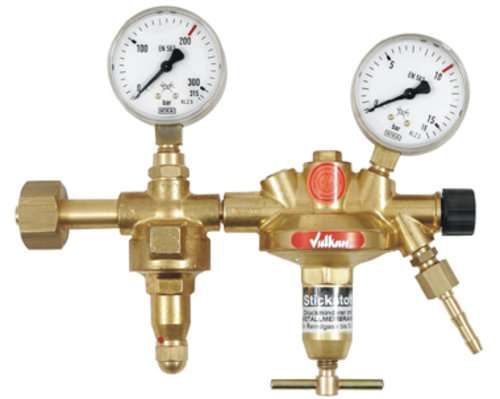

Vulkan F15/200 Effect LabLine nitrogen cylinder pressure reducer 0-1.5 bar, fully chrome-plated with a metal diaphragm for gas purity 5.0, with pre-pressure compensation for constant back pressure under all operating conditions
Standards & Design:
single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, adjustable outlet pressure: 0-1
according to DIN 477-1 No
Functional elements:
• shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, adjustable outlet pressure: 0-1
Technical data:
• maximum inlet pressure: 200 bar, adjustable outlet pressure: 0-1
• outlet pressure: 0-1
• output: 8 Nm³/h compressed air at 1
• Inlet: W24
• outlet: 6 mm stainless steel compression fitting
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Standards & Design:
single-stage design, with shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, adjustable outlet pressure: 0-1
according to DIN 477-1 No
Functional elements:
• shut-off valve, with safety gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, adjustable outlet pressure: 0-1
Technical data:
• maximum inlet pressure: 200 bar, adjustable outlet pressure: 0-1
• outlet pressure: 0-1
• output: 8 Nm³/h compressed air at 1
• Inlet: W24
• outlet: 6 mm stainless steel compression fitting
Dimensions:
Width x Height x Depth: 210 x 190 x 75 mm
Application:
- Gas Chromatography
- Laboratory
- Medical Technology
- Pharmaceutical Industry
- Photovoltaic Industry
- Research & Development
- Semiconductor Industry
- Spectrometry
- Universities
Class (purpose):
- Laboratory gases
Flow rate:
8 Nm³/h
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 10 (W 24.32 x 1/14 RH)
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 2,5 Bar
Material:
Brass, Chrome-plated
Outlet Connection:
G 1/2 RHak (according to EN 560)
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
210x190x75mm.
