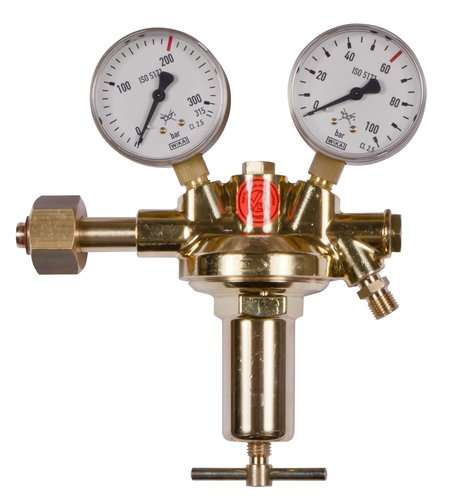

Cylinder regulator Synthetic air 0-60 bar Vulkan F60/200 Effect

Bottle pressure reducer Vulkan F60/200 Effect Synth. Air, DIN 477-1, 0-60 bar according to ISO 2503, with pre-pressure compensation for constant outlet pressure under all working conditions, single-stage design, without shut-off valve, with safety pressure gauges according to ISO 5171, maximum inlet pressure: 200 bar, output pressure: 0 - 60 bar adjustable, maximum output: 140 Nm³/h compressed air at 60 bar outlet pressure, input: G 3/4 RH U-nut according to DIN 477-1 No. 9, output: G 1/4 RHak according to EN 560, input pressure gauge: 0 - 315/200 bar, output pressure gauge: 0 - 100/60 bar, width x height x depth: 210 x 210 x 75 mm, with sticker, nameplate, and warning "only for synthetic air - not for oxygen." This cylinder pressure reducer is available in the following versions, among others: Versions: Special outlet screw connection: Standard:- External thread G1/4" RHk according to EN560 Options: Article numberGas purityOutlet connection 207376-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/4" RHk according to EN560 207376-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" RHk according to EN 560 207376-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" RHk according to EN 560 207376-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 207376-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 207376-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 207376-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm
