Cylinder regulator test gas 0-1,5 bar Vulkan F15/200 Effect

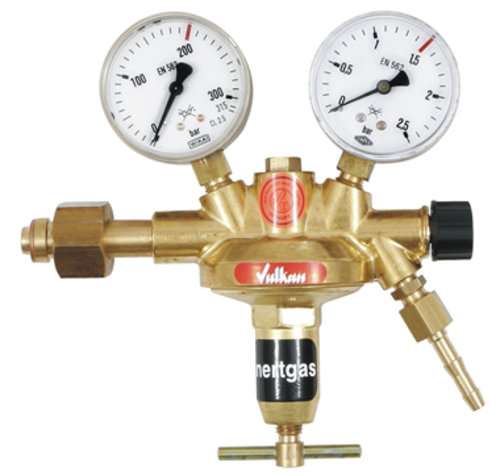

Cylinder pressure reducer Vulkan F15/200 Effect test gas DIN 477-1, 0 - 1.5 bar with pre-pressure compensation for constant back pressure under all working conditions, single-stage design, with shut-off valve, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0 - 1.5 bar adjustable, maximum output: 8 Nm³/h compressed air at 1.5 bar back pressure. Inlet: M19x1.5LH U-nut according to DIN 477-1 No. 14, outlet (optional special outlet): G3/8LHk x 9mm nozzle according to DIN EN 560, inlet pressure gauge: 0 - 315 / 200 bar, outlet pressure gauge: 0 - 2.5 / 1.5 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in, among other versions. following versions: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G3/8 LHk x 9 mm nozzle according to EN 560 Optional (surcharge): Order number Gas purity/membrane Outlet screw connection 203316 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 203316-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 203316-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 203316-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" LHk according to EN 560 203316-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 203316-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 203316-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 203316-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 203316-2 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/8" 203316-4 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/4" 203316-MM-815 for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 203316-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 203316-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" LHk according to EN 560 203316-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" LHk according to EN 560 203316-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 203316-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 203316-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 203316-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 203316-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/8" 203316-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
