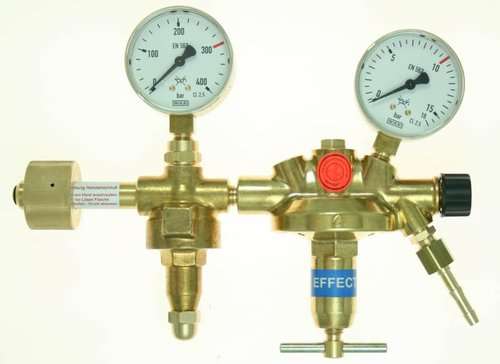

Cylinder regulator Test gas 0-10 bar Vulkan F10/2 300 Effect

Cylinder pressure reducer Vulkan F10/2 300 Effect test gas DIN 477-5, 0 - 10 bar according to DIN EN ISO 2503, two-stage design, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN EN ISO 5171, with shut-off valve. Inlet pressure max: 300 bar. Outlet pressure: 0 - 10 bar adjustable. Output max: 48 Nm³/h at 10 bar back pressure. Inlet: W30 x 2LH UM DIN 477-5, No. 57. Outlet: G3/8LHk x 9mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 400/300 bar. Outlet pressure gauge: 0 - 16/10 bar. Width x Height x Depth: 240 x 190 x 75 mm. Important note for 300 bar pressure reducers - Please Check your cylinder connection! Cylinder pressure regulators for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, 3: Difference between 200 bar and 300 bar pressure regulators. This cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- hose nozzle G3/8" LHk x 9mm Options (surcharge): Order numberGas purity/membraneOutlet screw connection 303820 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 303820-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 303820-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 303820-830 for technical gases up to 4.5, with standard membrane, external thread G1/2" LHk according to EN 560 303820-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 303820-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 303820-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 303820-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 303820-2 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/8" 303820-4 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/4" 303820-MM-815 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 303820-MM for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 303820-MM-814 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G3/8" LHk according to EN 560 303820-MM-830 for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) external thread G1/2" LHk according to EN 560 303820-MM-6M ​​for pure gases up to 5.0, with metal diaphragm SS321 (1.4541) compression fitting VA 6mm 303820-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 303820-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 303820-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 303820-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 303820-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
