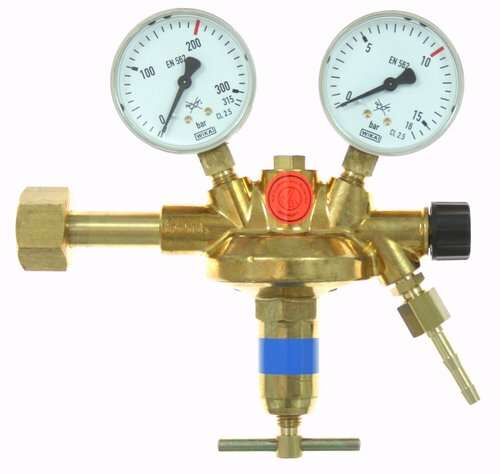

Cylinder regulator test gas 0-10 bar Vulkan F10/200 Effect

Cylinder pressure reducer Vulkan F10/200 Effect test gas DIN 477-1, 0-10 bar according to ISO 2503, class 3, with pre-pressure compensation for constant back pressure under all working conditions. Single-stage design, with shut-off valve, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0-10 bar adjustable, maximum output: 48 Nm³/h compressed air at 10 bar outlet pressure. Inlet: M 19x1.5 LHf U-nut according to DIN 477-1 No. 14, outlet (optional special outlet): G 3/8 LHk x 9 mm nozzle according to EN 560, inlet pressure gauge: 0-315/200 bar, outlet pressure gauge: 0-16/10 bar, width x height x depth: 210 x 190 x 75 mm. This cylinder pressure reducer is available in the following versions: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard diaphragm. Optional (surcharge): - for pure gases up to a Gas purity 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G3/8 LHk x 9 mm nozzle according to EN 560 Optional (surcharge): Order numberGas purity/MembraneOutlet screw connection 203805 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 203805-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 203805-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 203805-830 for technical gases up to 4.5, with standard membrane External thread G1/2" LHk according to EN 560 203805-6M for technical gases up to 4.5, with standard membrane compression fitting VA 6mm 203805-8M for technical gases up to 4.5, with standard membrane compression fitting VA 8mm 203805-10M for technical gases up to 4.5, with standard membrane compression fitting VA 10mm 203805-12M for technical gases up to 4.5, with standard membrane compression fitting VA 12mm 203805-2 for technical gases up to 4.5, with standard membrane compression fitting VA 1/8" 203805-4 for technical gases up to 4.5, with standard membrane compression fitting VA 1/4" 203805-MM-815 for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 203805-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 203805-MM-814 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" LHk according to EN 560 203805-MM-830 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" LHk according to EN 560 203805-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 203805-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 203805-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 203805-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm 203805-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/8" 203805-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 1/4"
