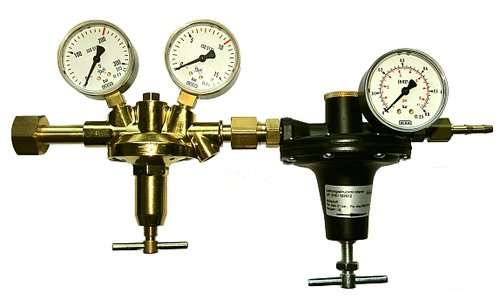

Vulkan F10/2 NP test gas cylinder pressure reducer DIN 477-1, 200 bar, 0 - 250 mbar
Standards & Design:
two-stage design, consisting of F10/200 with straight outlet and LP216, , 420904 fully assembled with safety gauges according to ISO 5171
according to DIN 477-1
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 200 bar
• Output pressure: 0 - 250 mbar adjustable
• Inlet: M19x1
• Outlet: G 3/8 LHk x 9mm hose nozzle according to DIN EN 560
Dimensions:
Width x Height x Depth: 380 x 250 x 110 mm
Standards & Design:
two-stage design, consisting of F10/200 with straight outlet and LP216, , 420904 fully assembled with safety gauges according to ISO 5171
according to DIN 477-1
according to DIN EN 560
Technical data:
• Maximum inlet pressure: 200 bar
• Output pressure: 0 - 250 mbar adjustable
• Inlet: M19x1
• Outlet: G 3/8 LHk x 9mm hose nozzle according to DIN EN 560
Dimensions:
Width x Height x Depth: 380 x 250 x 110 mm
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet pressure:
200 Bar
LP Gauge:
LP gauge scale:
0 to 0,250 Bar
Material:
Brass
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Double stage
Type of Gas:
Tracer gases (mixture)
W (Width) x H (Height) x D (Depth):
380x250x110mm.
