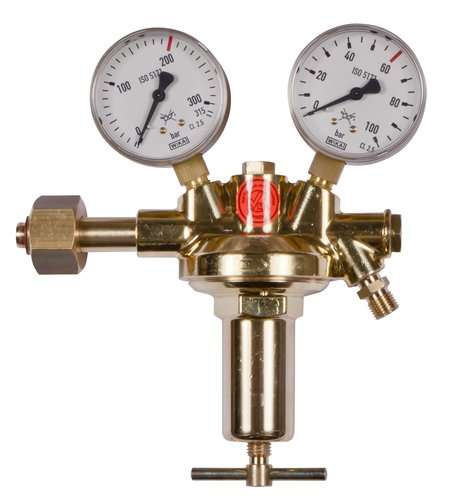

Cylinder regulator test gas 0-60 bar Vulkan F60/200 Effect

Cylinder pressure reducer Vulkan F60/200 Effect test gas DIN 477-1, 0 - 60 bar according to ISO 2503, with pre-pressure compensation for constant back pressure under all working conditions, single-stage design, without shut-off valve, with safety pressure gauges according to DIN EN ISO 5171, maximum inlet pressure: 200 bar, outlet pressure: 0 - 60 bar adjustable, maximum output: 140 Nm³/h compressed air at 60 bar back pressure, inlet: M19 x 1.5 LH according to DIN 477-1 No. 14, outlet (optional special outlet): G3/8 LHk according to EN 560, inlet pressure gauge: 0 - 315/200 bar, outlet pressure gauge: 0 - 100/60 bar, width x height x depth: 210 x 210 x 75 mm. This cylinder pressure reducer is available in the following, among others: Versions: Special outlet screw connection: Standard: - External thread G3/8" LHk according to EN560 Optional (surcharge): Order number Gas purity/Membrane Outlet screw connection 203384-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G3/8" LHk according to EN 560 203384-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) External thread G1/2" LHk according to EN 560 203384-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 6mm 203384-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 8mm 203384-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 10mm 203384-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) Compression fitting VA 12mm
