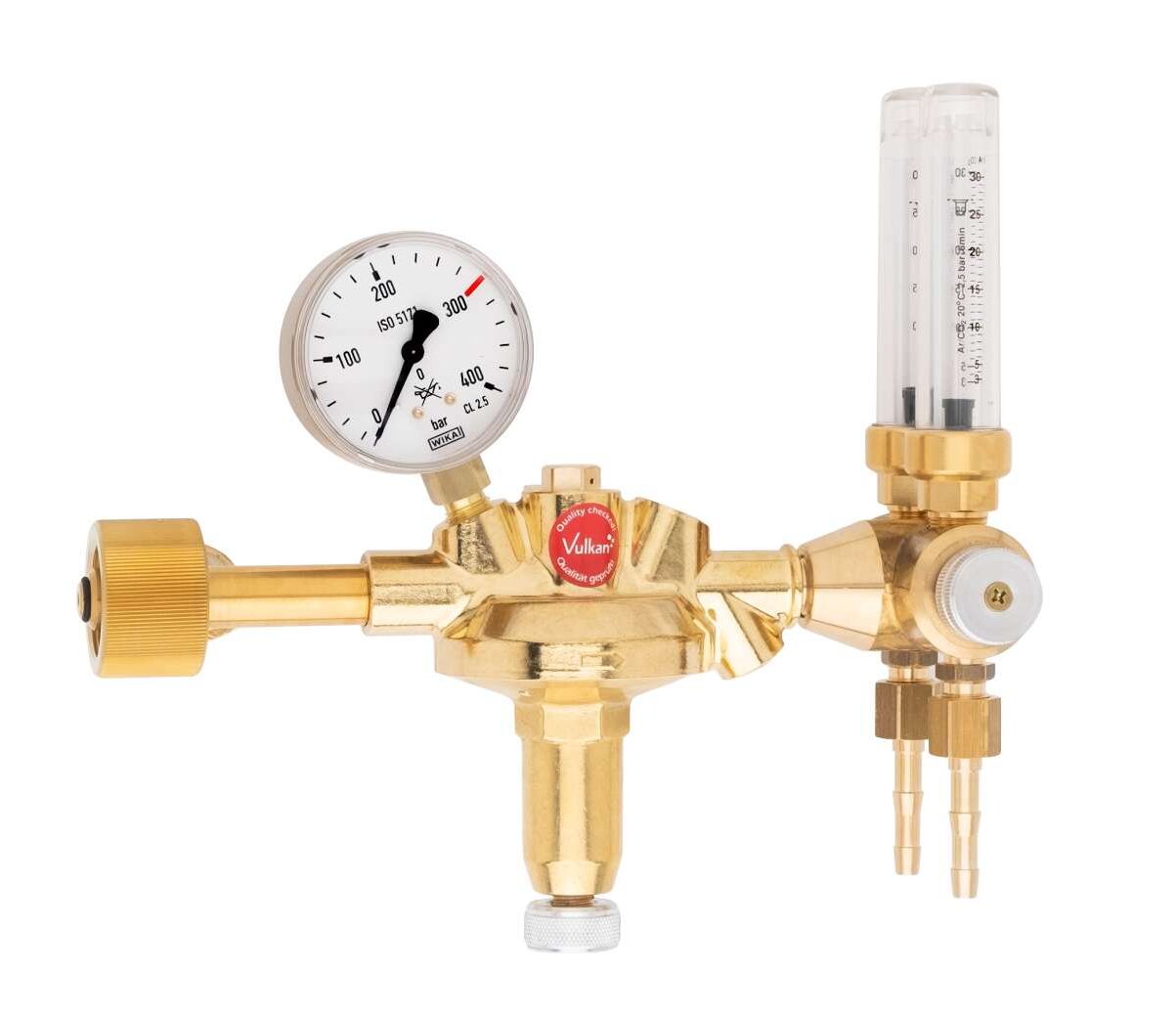

Vulkan F15/200 2F Argon cylinder pressure reducer with 2 flow meters, 0.5-5 Nl/min, 4.5 bar according to ISO 2503, Class 20. Single-stage design with two flow meters for monitoring the exact flow rate in Nl/min. With pre-pressure compensation for constant outlet pressure when the pre-pressure drops, with safety pressure gauge according to ISO 5171, and with shut-off valve. Maximum inlet pressure: 200 bar. Outlet pressure: 2 x 4.5 bar, fixed output. Output: 2 x 0.5 - 5.0 Nl/min. Ar/CO2 adjustable. Inlet: W 21.8 x 1/14 RH U-nut according to DIN 477-1, No. 6. Outlet: 2x G 1/4 RHk x 6mm nozzle according to EN 560. Inlet pressure gauge: 0 - 315/200 bar. Width x Height x Depth: 250 x 230 x 75 mm. Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel membrane SS321 (1.4541).
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
0,3 Nm³/h
Flowmeter:
Gas Quality:
up to 4.5
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 6 (W 21.8 x 1/14 RH
Inlet pressure:
200 Bar
Material:
Brass
Outlet Connection:
G 1/4 RH x 6 mm (hose grommet)
Outlet pressure:
4,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Argon (Ar)
W (Width) x H (Height) x D (Depth):
250x230x75mm.
Outlet pressure:
4,5Bar
