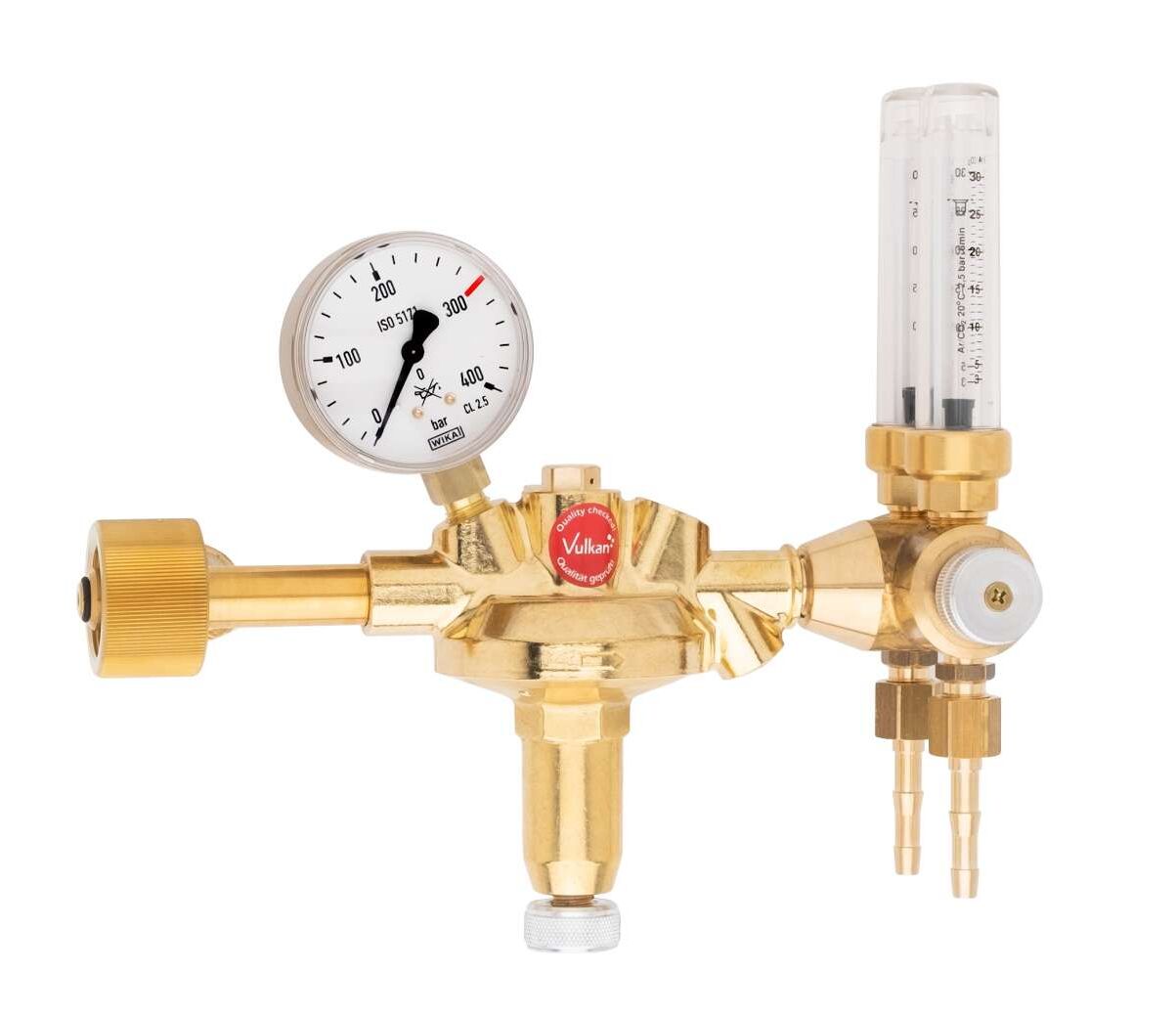

Vulkan F15/200 2F Effect 2 cylinder pressure reducer with flowmeter H2 3-32 Nl/min. 4.5 bar according to ISO 2503, Class 20. Single-stage design with two flowmeters for monitoring the exact flow rate in Nl/min. With pre-pressure compensation for constant back pressure when the pre-pressure drops. With safety pressure gauge according to ISO 5171 and shut-off valve. Maximum inlet pressure: 200 bar. Outlet pressure: 2 x 4.5 bar, fixed output. Output: 2 x 3.0 - 32.0 Nl/min. Hydrogen adjustable. Inlet: W21.8x1/14LH U-nut according to DIN 477-1, No. 1. Outlet: 2x G 3/8LHk x 9mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 315 / 200 bar. Width x Height x Depth: 210 x 230 x 75 mm. Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel membrane SS321 (1.4541).
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
1,92 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 315 Bar
Inlet Connection:
DIN 477-1 No. 1 (W 21.80 x 1/14 LH)
Inlet pressure:
200 Bar
Material:
Brass
Outlet Connection:
G 3/8 LH x 9 mm (hose grommet)
Outlet pressure:
4,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Hydrogen (H2)
W (Width) x H (Height) x D (Depth):
210x230x75mm.
Outlet pressure:
4,5Bar
