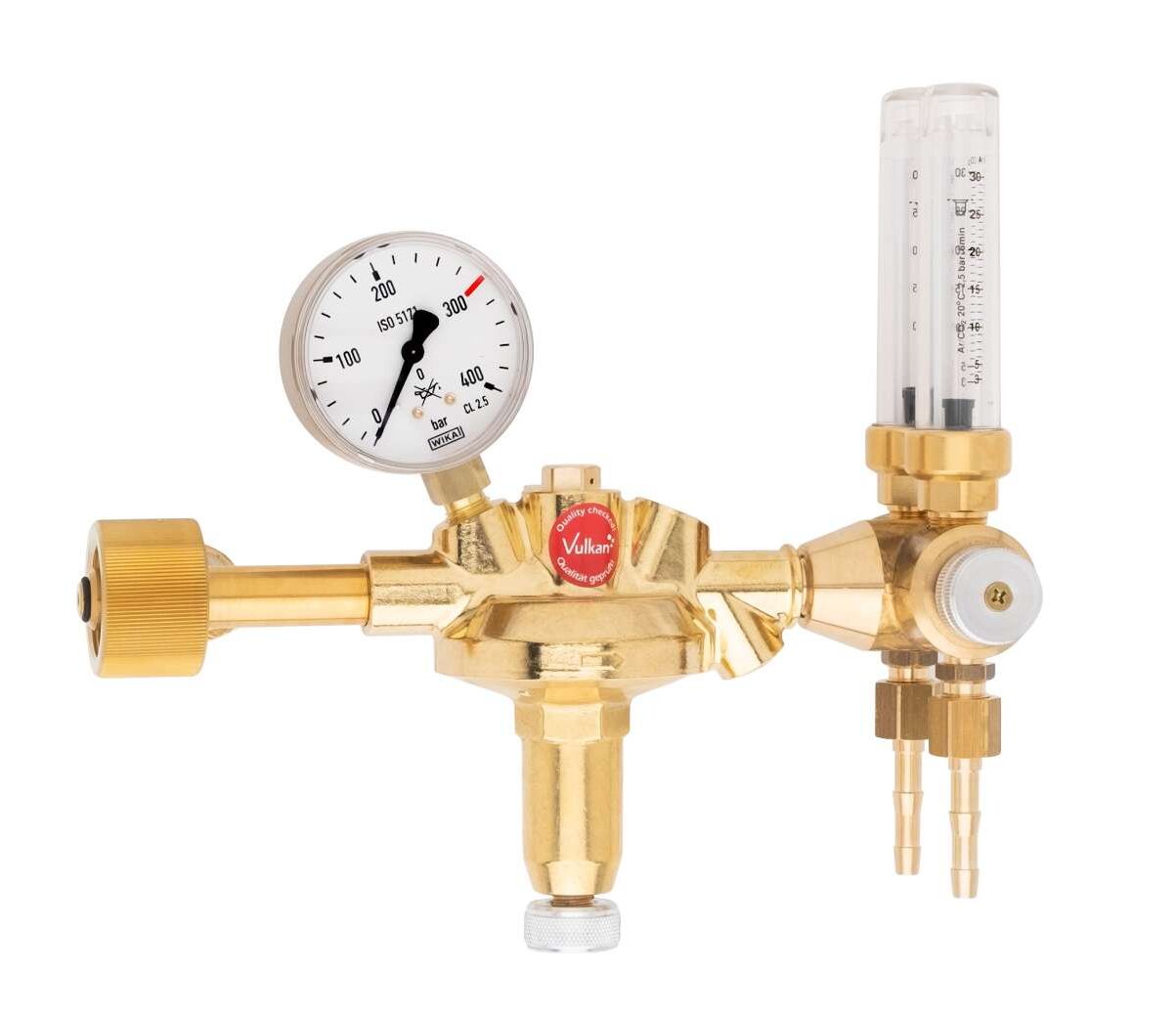

Cylinder pressure reducer Vulkan F15/300 2F Argon 2 flow meters 0.5-5 Nl/min., 4.5 bar according to ISO 2503, class 20, single-stage design with two flow meters for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauge according to ISO 5171, with shut-off valve. Inlet pressure max: 300 bar. Outlet pressure: 2 x 4.5 bar, fixed output. Output: 2 x 0.5 - 5.0 Nl/min. Ar/CO2 adjustable. Inlet: W30x2 RHk knurled nut according to DIN 477-5, No. 54. Outlet: 2x G 1/4 RHk x 6mm nozzle according to EN 560. Inlet pressure gauge: 0 - 400/300 bar. Width x Height x Depth: 250 x 230 x 130 mm. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure reducers for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, Section 3: Difference between 200 bar and 300 bar pressure reducers. Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel membrane SS321 (1.4541).
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
0,3 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 54 (W30 x 2 RH 15.9 / 20.1))
Inlet pressure:
300 Bar
Material:
Brass
Outlet Connection:
G 1/4 RH x 6 mm (hose grommet)
Outlet pressure:
4,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Argon (Ar)
W (Width) x H (Height) x D (Depth):
250x230x130mm.
Outlet pressure:
4,5Bar
