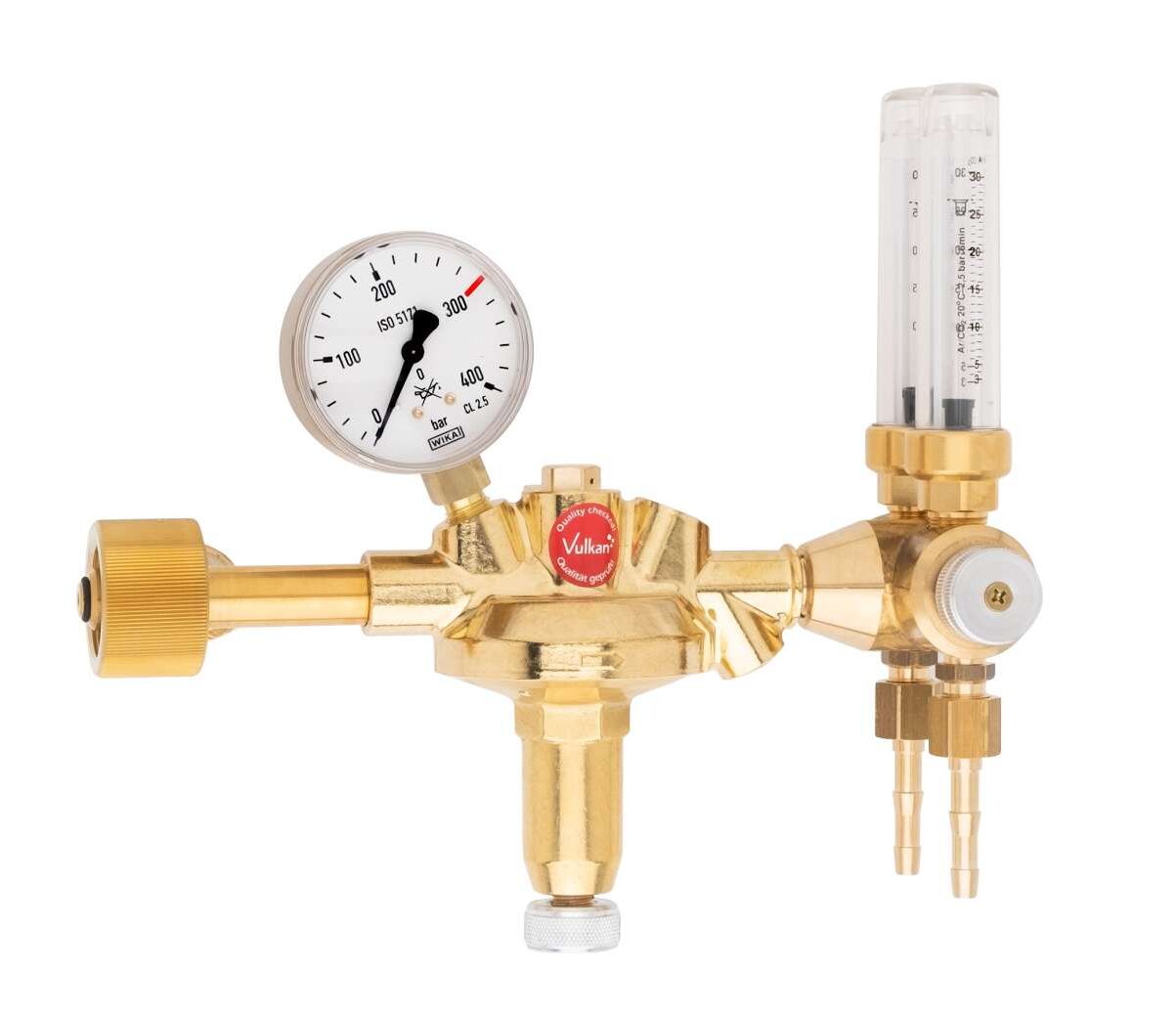

Vulkan F15/300 2F cylinder pressure reducer for forming gas, 2 flow meters 32 Nl/min. 2.5 bar according to ISO 2503, Class 20, single-stage design with two flow meters for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure drops, with safety pressure gauge according to ISO 5171, with shut-off valve. Maximum inlet pressure: 300 bar. Outlet pressure: 2 x 2.5 bar, fixed output. Output: 2 x 3.0 - 32.0 Nl/min. Forming gas adjustable. Inlet: W30x2LH U-nut according to DIN 477-1, No. 57. Outlets: 2 x G 3/8 LHk x 9mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 400 / 300 bar. Width x Height x Depth: 250 x 230 x 130 mm. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure reducers for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, Section 3: Difference between 200 bar and 300 bar pressure reducers. Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with a standard membrane. Optional (surcharge): - for pure gases up to a gas purity of 5.0 with a stainless steel membrane SS321 (1.4541).
Application:
- Automotive Industry
- Chemical Industry
- Cutting
- Manufacturing Industry
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Flow rate:
1,92 Nm³/h
Flowmeter:
Gas Quality:
up to 5.0
HP Gauge:
HP gauge scale:
0 to 400 Bar
Inlet Connection:
DIN 477-5 No. 57 (W 30 x 2 LH 15.2 / 20.8)
Inlet pressure:
300 Bar
Material:
Brass
Outlet Connection:
G 3/8 LH x 9 mm (hose grommet)
Outlet pressure:
2,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Shut off valve:
Type of Gas:
Forming gases (mixture)
W (Width) x H (Height) x D (Depth):
250x230x130mm.
Outlet pressure:
2,5Bar
