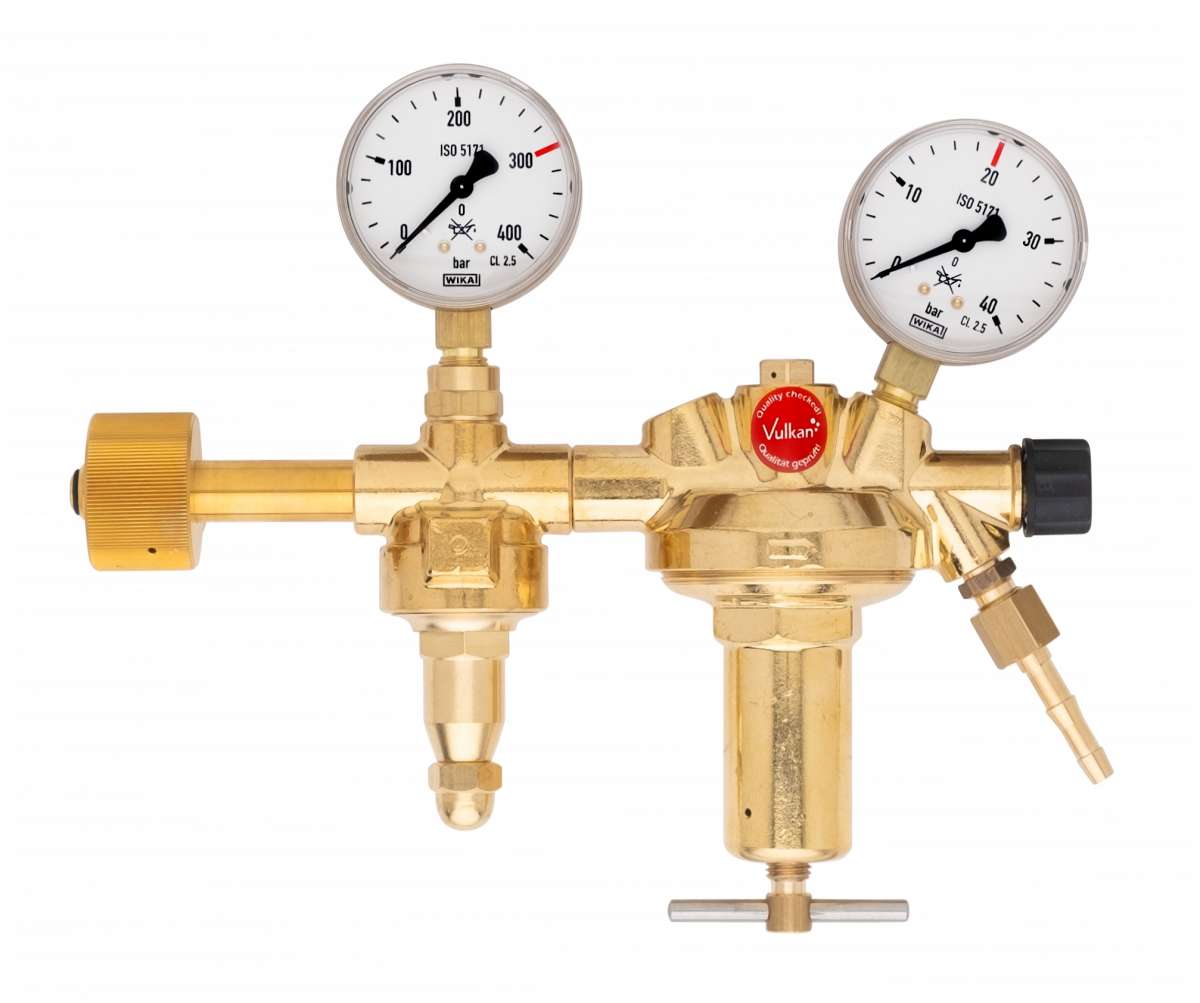

Cylinder regulator Vulkan F20/2 200 Effect DIN 477, 0 - 20 bar

Cylinder pressure reducer Vulkan F20/2 200 Effect Oxygen DIN 477, 0 - 20 bar according to DIN EN ISO 2503, Class 5, two-stage design, first stage with metal diaphragm - set to 30 bar, with pre-pressure compensation for constant back pressure with falling pre-pressure, with safety pressure gauges according to DIN ISO 5171, with shut-off valve. Maximum inlet pressure: 200 bar. Output pressure: 0 - 20 bar adjustable. Maximum output: 60 Nm?/h at 20 bar back pressure. Inlet: G3/4RH U-nut according to DIN 477-1, No. 9. Outlet: G 1/4 RHk x 6mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 315/200 bar. Outlet pressure gauge: 0 - 40/20 bar. Width x Height x Depth: 240 x 210 x 75 mm. Cylinder pressure reducer is available in the following versions, among others: Gas purity/membrane: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - hose nozzle G1/4" RHk x 6mm Options (surcharge): Item number Gas purity Outlet connection 208230 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 208230-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 208230-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 208230-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 208230-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 208230-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 208230-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 208230-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 208230-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 208230-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 208230-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 208230-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 208230-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 208230-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 208230-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 208230-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 208230-MM-6M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 208230-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 208230-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 208230-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 208230-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 208230-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
