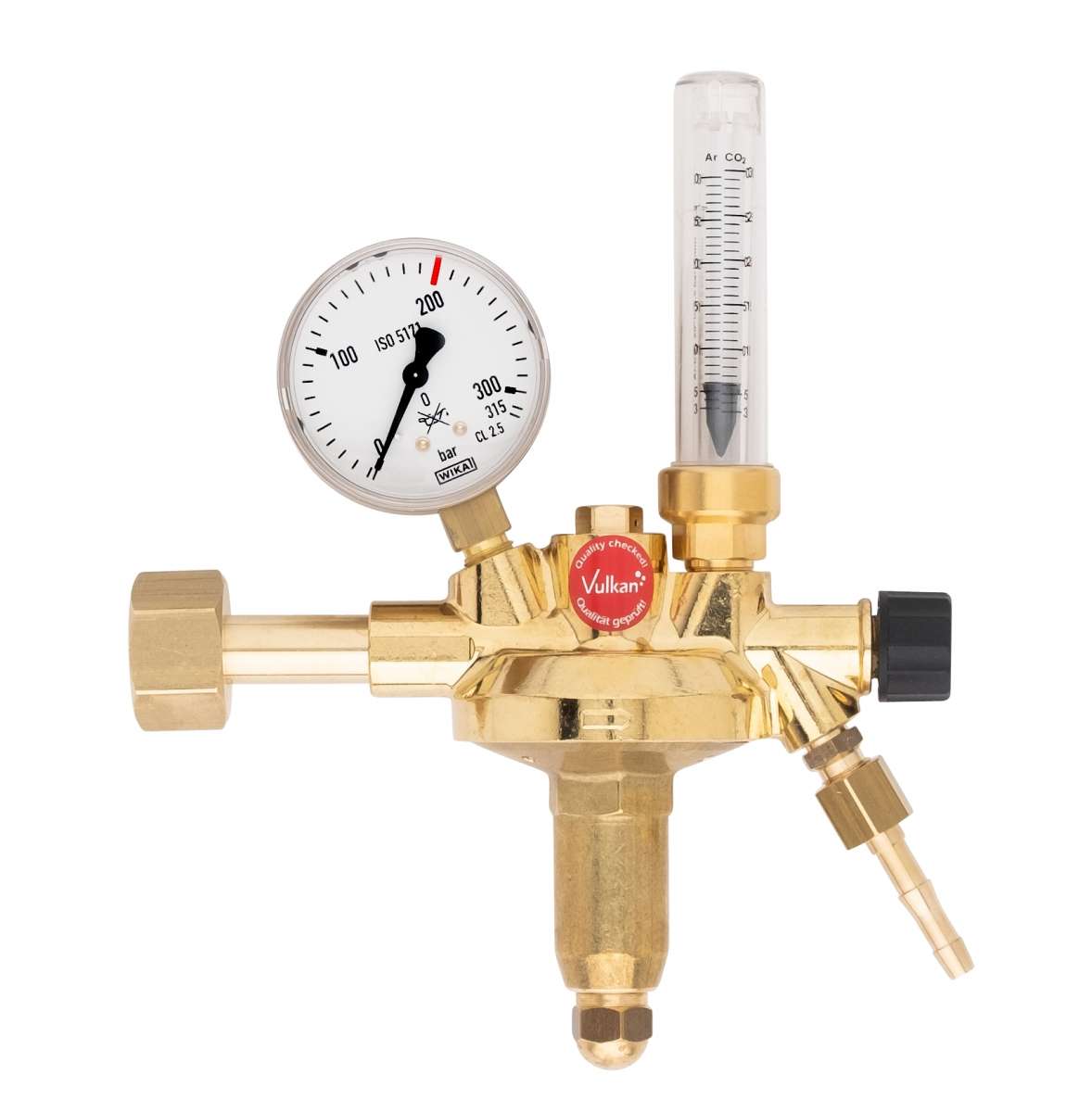

Cylinder regulator with flowmeter Argon/CO₂ 1-15 Nl/min Vulkan F10/300F Effect

Cylinder pressure reducer Vulkan F10/300 F Effect Flowmeter Argon/CO2 1-15 Nl/min according to DIN EN 13918, Class 10, single-stage design with flowmeter for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauges according to ISO 5171, with shut-off valve. Inlet pressure max: 300 bar. Outlet pressure: 2.5 bar, fixed. Output: 1.0 - 15.0 Nl/min. Argon adjustable. Inlet: W30x2RH U-nut according to DIN 477-5. Outlet (optional special outlet): G 1/4RHk x 6mm nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 400/300 bar. Width x Height x Depth: 210 x 230 x 75 mm. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure reducers for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial 3: Difference between 200 bar and 300 bar pressure reducers. This cylinder pressure reducer is available in the following versions: Gas purity/membrane: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item numberGas purity/membraneOutlet connection 326700 for technical gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 326700-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 326700-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 326700-870 for technical gases up to 4.5, with standard membrane, external thread G3/8" RHk according to EN 560 326700-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" RHk according to EN 560 326700-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 326700-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 326700-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 326700-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 326700-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 326700-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 326700-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 326700-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 326700-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 326700-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 326700-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 326700-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 326700-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 326700-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 326700-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 326700-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 326700-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
