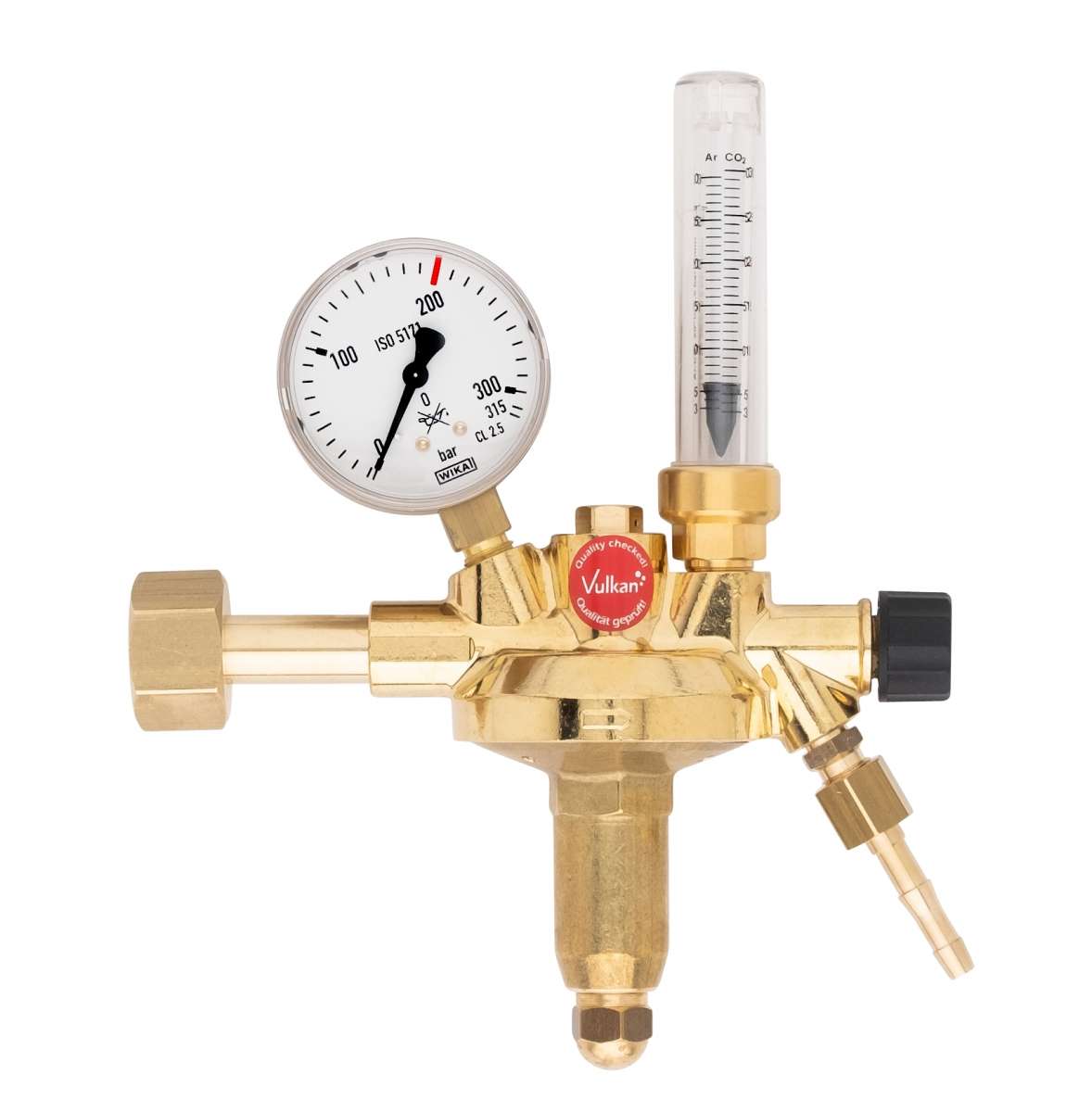

Cylinder regulator with flowmeter Argon/CO₂ 1-30 Nl/min Vulkan F10/200F Effect

Cylinder pressure reducer Vulkan F10/200 F Effect Flowmeter Argon / CO2 1-30 Nl/min according to ISO 2503, Class 20, single-stage design with flowmeter for controlling the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauges according to ISO 5171, with shut-off valve. Inlet pressure max: 200 bar. Outlet pressure: 2.5 bar, fixed output. Output: 1.0 - 30.0 Nl/min. Ar/CO2 adjustableInlet: W 21.8x1/14 RH U-nut according to DIN 477-1,Outlet (special outlet option): G 1/4 RHk x 6mm nozzle according to EN 560Inlet pressure gauge: 0 - 315/200 barWidth x Height x Depth: 210 x 230 x 75 mm This cylinder pressure reducer is available in the following versions: Gas purity/diaphragm: Standard:- for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge):- for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard:- G1/4 RHk x 6 mm nozzle according to EN 560 Options (surcharge): Item numberGas purity/diaphragmOutlet connection 226702 for technical Gases up to 4.5, with standard membrane Hose nozzle G1/4" RHk x 6mm 226702-812 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" RHk x 9mm 226702-800 for technical gases up to 4.5, with standard membrane External thread G1/4" RHk according to EN560 226702-870 for technical gases up to 4.5, with standard membrane External thread G3/8" RHk according to EN 560 226702-838 for technical gases up to 4.5, with standard membrane External thread G1/2" RHk according to EN 560 226702-6M for technical gases up to 4.5, with standard membrane Compression fitting VA 6mm 226702-8M for technical gases up to 4.5, with standard membrane Compression fitting VA 8mm 226702-10M for technical gases up to 4.5, with standard membrane Compression fitting VA 10mm 226702-12M for technical gases up to 4.5, with standard membrane Compression fitting VA 12mm 226702-2 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/8" 226702-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 226702-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G1/4" RHk x 6mm 226702-MM-812 for pure gases up to 5.0, with metal membrane SS321 (1.4541) Hose nozzle G3/8" RHk x 9mm 226702-MM-800 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/4" RHk according to EN560 226702-MM-870 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" RHk according to EN 560 226702-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" RHk according to EN 560 226702-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 226702-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 226702-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 226702-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 226702-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 226702-MM-4 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/4"
