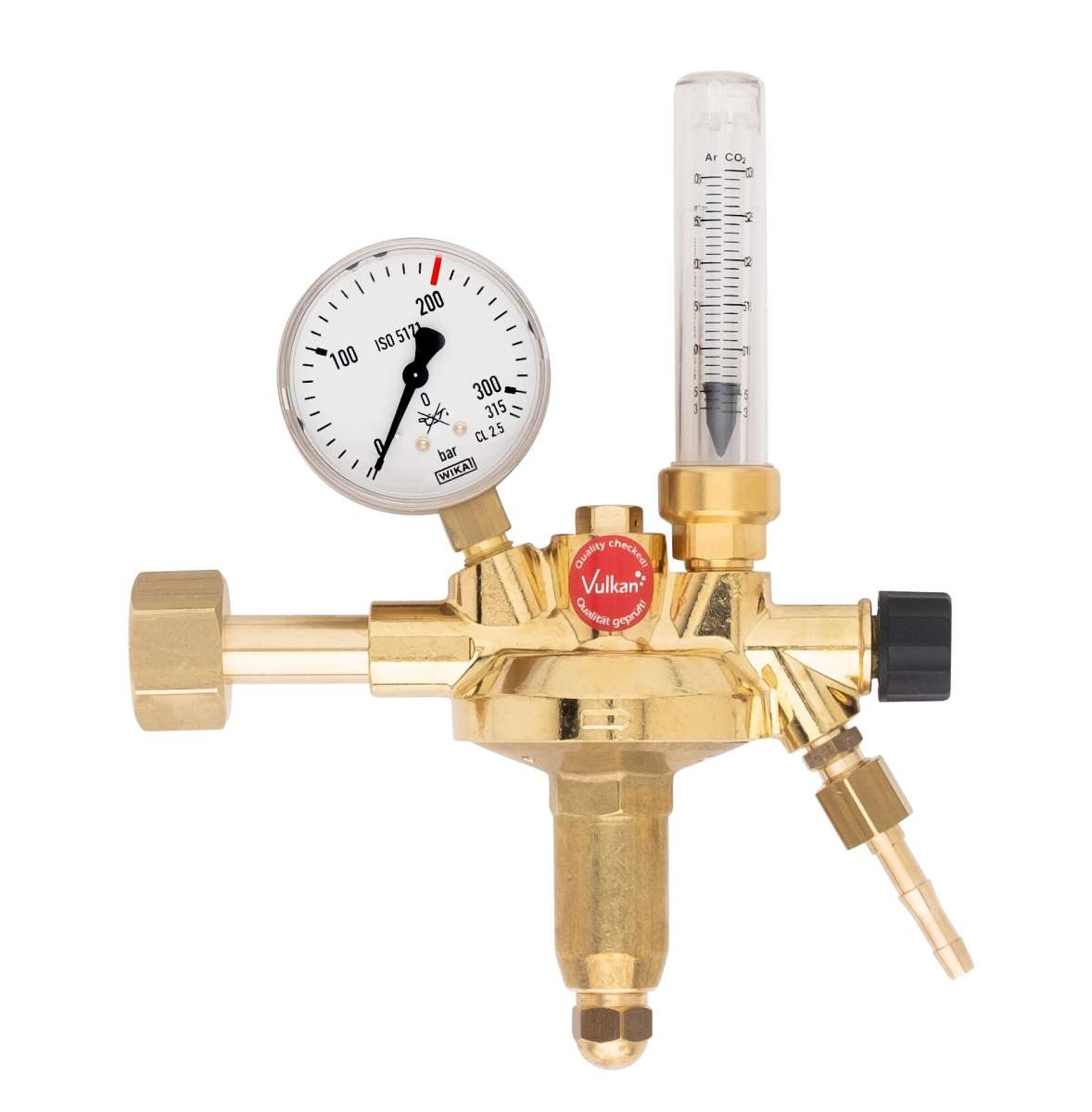

Cylinder regulator with flowmeter forming gas 30 Nl/min Vulkan F10/300F Effect

Cylinder pressure reducer Vulkan F10/300 F Effect Flowmeter forming gas 30 Nl/min according to ISO 2503, class 20, single-stage design with flowmeter for monitoring the exact flow rate in Nl/min, with pre-pressure compensation for constant back pressure when the pre-pressure falls, with safety pressure gauges according to DIN ISO 5171, with shut-off valve. Inlet pressure max: 300 bar. Outlet pressure: 2.5 bar, fixed output. Output: 3.0 - 30.0 Nl/min. Forming gas adjustable. Inlet: W30x2LH U-nut according to DIN 477-5, No. 57. Outlet (optional special outlet): G 3/8LHk x 9mm hose nozzle according to DIN EN 560. Inlet pressure gauge: 0 - 400 / 300 bar. Width x Height x Depth: 210 x 230 x 75 mm. Important note for 300 bar pressure reducers - please check your cylinder connection! Cylinder pressure reducers for 300 bar have a manual connection according to DIN 477 Part 5 and are NOT backward compatible. This means they do NOT fit cylinders with a maximum filling pressure of 200 bar! If necessary, see our following tutorial, Section 3: Difference between 200 bar and 300 bar pressure reducers. This cylinder pressure reducer is available in the following versions, among others: Gas purity/diaphragm: Standard: - for technical gases up to a gas purity of 4.5 with standard membrane Optional (surcharge): - for pure gases up to a gas purity of 5.0 with stainless steel membrane SS321 (1.4541) Special outlet screw connection: Standard: - G3/8 LHk x 9 mm nozzle according to EN 560 Optional (surcharge): Order number Gas purity/diaphragm Outlet screw connection 324710 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 9mm 324710-815 for technical gases up to 4.5, with standard membrane Hose nozzle G3/8" LHk x 6mm 324710-814 for technical gases up to 4.5, with standard membrane External thread G3/8" LHk according to EN 560 324710-838 for technical gases up to 4.5, with standard membrane, external thread G1/2" LHk according to EN 560 324710-6M for technical gases up to 4.5, with standard membrane, compression fitting VA 6mm 324710-8M for technical gases up to 4.5, with standard membrane, compression fitting VA 8mm 324710-10M for technical gases up to 4.5, with standard membrane, compression fitting VA 10mm 324710-12M for technical gases up to 4.5, with standard membrane, compression fitting VA 12mm 324710-2 for technical gases up to 4.5, with standard membrane, compression fitting VA 1/8" 324710-4 for technical gases up to 4.5, with standard membrane Compression fitting VA 1/4" 324710-MM-815 for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 6mm 324710-MM for pure gases up to 5.0, with metal membrane SS321 (1.4541) hose nozzle G3/8" LHk x 9mm 324710-MM-814 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G3/8" LHk according to EN 560 324710-MM-838 for pure gases up to 5.0, with metal membrane SS321 (1.4541) external thread G1/2" LHk according to EN 560 324710-MM-6M ​​for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 6mm 324710-MM-8M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 8mm 324710-MM-10M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 10mm 324710-MM-12M for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 12mm 324710-MM-2 for pure gases up to 5.0, with metal membrane SS321 (1.4541) compression fitting VA 1/8" 324710-MM-4 for pure gases up to 5.0, with Metal membrane SS321 (1.4541) compression fitting VA 1/4"
