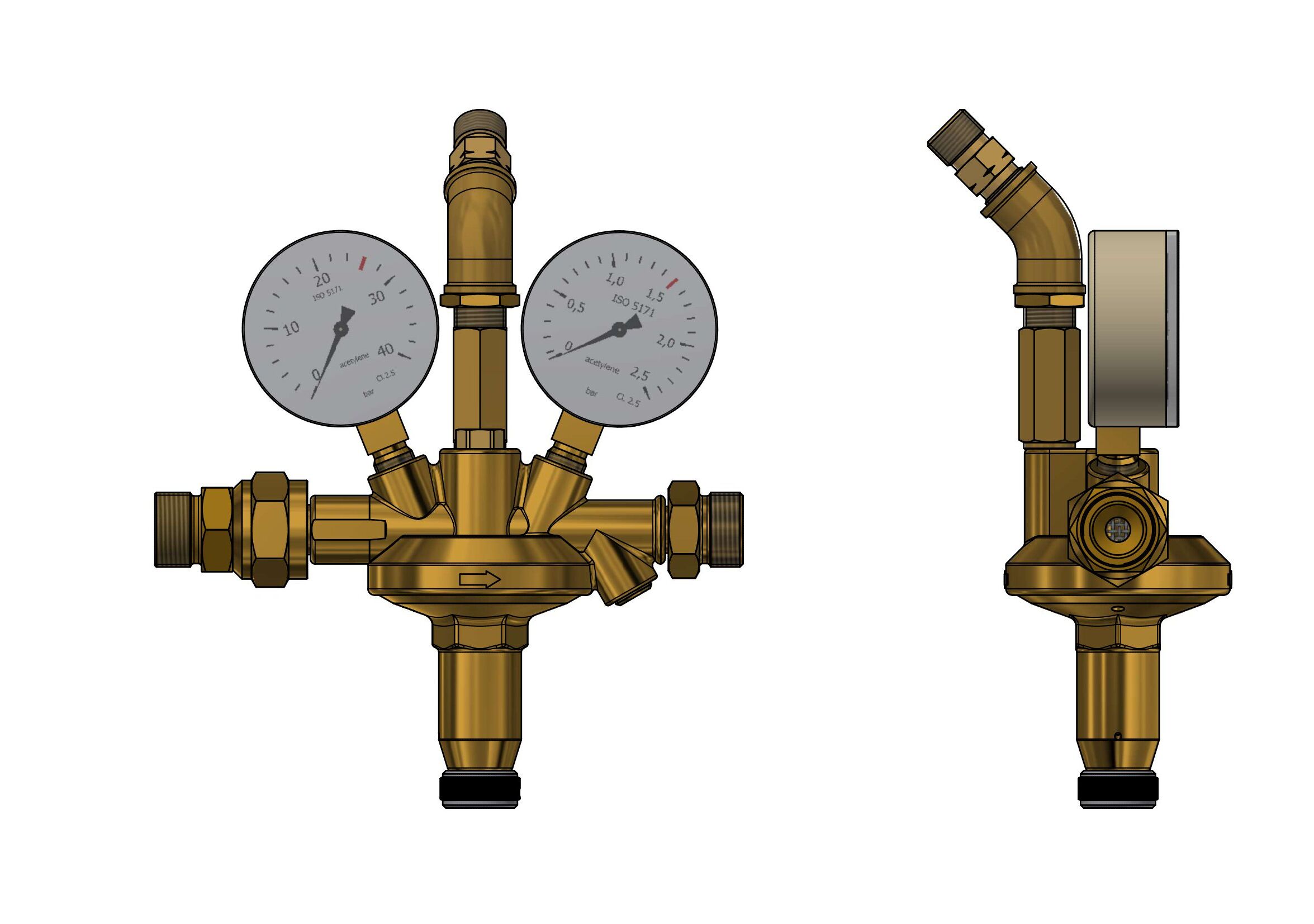

Linde Manifold regulator acetylene H20 0-1,5 bar 20 Nm3/h

Linde
Write a review
Ask a question
32490250
+ −
Buy now with 1-click

acc. ISO 7291, single stage, with safety pressure gauges acc. ISO 5171

inlet pressure max: 25 bar

outlet pressure: 0 – 1,5 bar regelbar

Flow max: 18 Nm³/h at 1,5 bar outlet pressure

inlet connection: M24x1,5RHak male

outlet connection: M24x1,5RHak male

inlet pressure gauge: 0 – 40/ 25 bar

outlet pressure gauge: 0 – 2,5/ 1,5 bar

Width x heighth x depth: 232 x 185 x 75 mm

with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape and certificate 2.2

Linde Code:
32490250
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Acetylene (C2H2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
25 Bar
Outlet pressure:
0 - 1,5 Bar
Flow rate:
18 Nm³/h
Inlet Connection:
M 24 x 1,5 RHak
Outlet Connection:
M 24 x 1,5 RHak
Application:
  • Automotive Industry
  • Cutting
  • Manufacturing Industry
  • Medical Technology
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
25 Bar
LP Gauge:
LP gauge scale:
1,5 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
220 x 200 x 75 mmmm.
