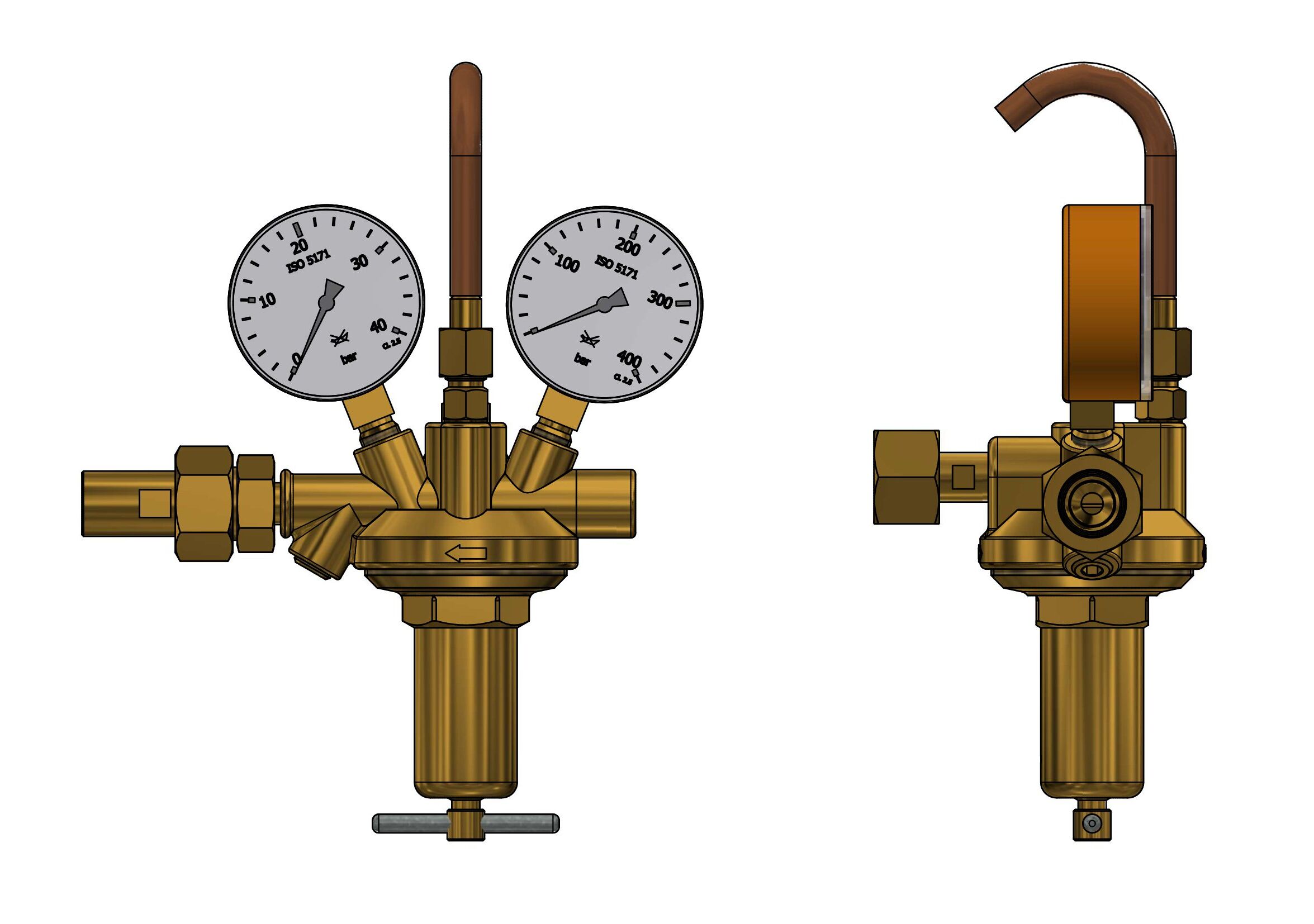

free of oil- and grease, acc. to ISO 7291, with metal diaphragm, single stage, with safety gauges acc. to ISO 5171inlet pressure max: 100 bar
outlet pressure: 0 – 20 bar adjustable
flow max: 75 Nm³/h compr. air at 20 bar outlet pressure
inlet: (rear): M 24x1,5 RHk - S16 nut
outlet: G3/4RH x 18mm brazing piece
relief valve with mounted copper pipe bend (270 °, 10x1 mm)
inlet gauge: 0 – 160/100 bar
working gauge: 0 – 40/20 bar
width x height x depth: 170 x 200 x 106 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "N", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
with sticker "not for oxygen use"
Due to the cooling energy evolving from the decompression, the output of the regulator is strongly limited and does not comply with the above mentioned value indicated for the use of compressed air.
For continously high flow the additional use of a gas pre heater may be necessary.
outlet pressure: 0 – 20 bar adjustable
flow max: 75 Nm³/h compr. air at 20 bar outlet pressure
inlet: (rear): M 24x1,5 RHk - S16 nut
outlet: G3/4RH x 18mm brazing piece
relief valve with mounted copper pipe bend (270 °, 10x1 mm)
inlet gauge: 0 – 160/100 bar
working gauge: 0 – 40/20 bar
width x height x depth: 170 x 200 x 106 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "N", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
with sticker "not for oxygen use"
Due to the cooling energy evolving from the decompression, the output of the regulator is strongly limited and does not comply with the above mentioned value indicated for the use of compressed air.
For continously high flow the additional use of a gas pre heater may be necessary.
Linde Code:
32492252
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Compressed Air (mixture)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
100 Bar
Outlet pressure:
0 - 20 Bar
Flow rate:
75 Nm³/h
Inlet Connection:
M 24 x 1,5 RHk
Outlet Connection:
G 3/4 RH x 18mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
SS 316L
HP Gauge:
HP gauge scale:
100 Bar
LP Gauge:
LP gauge scale:
20 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
170 x 200 x 106 mmmm.
