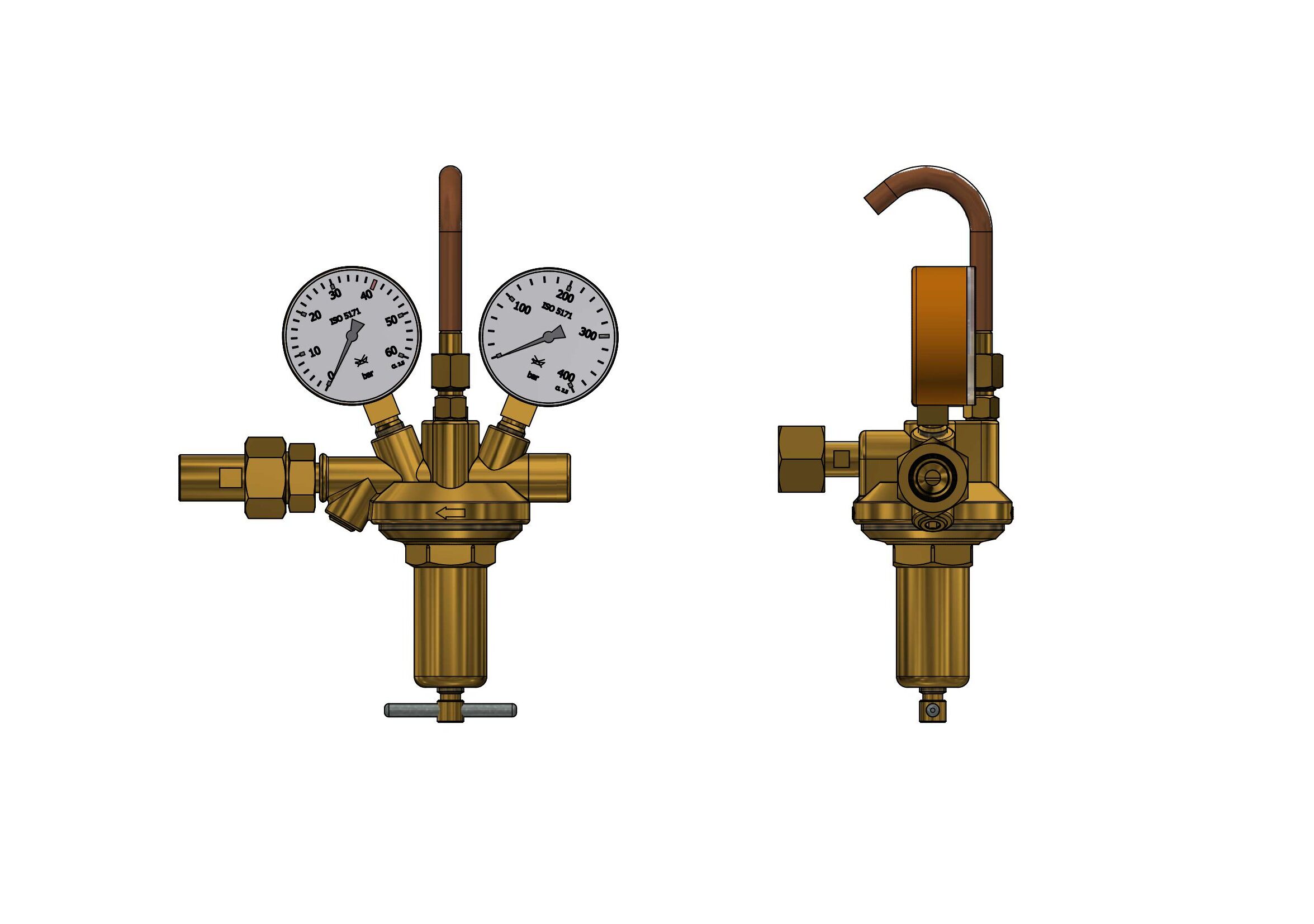

According to DIN EN ISO 7291, single-stage design, with safety pressure gaugesDIN ISO 5171, chrome-plated lifter, hard PVC locking cone, with metal membrane,
Inlet pressure max: 300 bar
Output pressure: 0 – 10 bar adjustable
Output max: 90 Nm³/h compressed air at 10 bar back pressure
Input (rear): M 24x1.5 RHk - S16 Ü-nut
Output: G3/4RH x 18mm solder socket
Input pressure gauge: 0 – 400/300 bar
Output pressure gauge: 0 – 16/10 bar
Blow-off valve with mounted Cu pipe bend (270°, 10x1 mm)
Width x Height x Depth: 160 x 326 x 108 mm
With manufacturer's declaration, operating instructions, shrink-wrapped in food-safe foil with sticker with Linde number/oil and fat-free on cardboard, individually packed in foamed cardboard, with Linde adhesive tape, "glass fork symbol" (according to Regulation (EC) 1935/2004, Annex II) on foil and cardboard, code letter "N".
The pressure reducer meets the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and the LFGB and is suitable for contact with food gases.
Factory certificate 2.2 and test report
With sticker, nameplate and warning “not for oxygen”
Inlet pressure max: 300 bar
Output pressure: 0 – 10 bar adjustable
Output max: 90 Nm³/h compressed air at 10 bar back pressure
Input (rear): M 24x1.5 RHk - S16 Ü-nut
Output: G3/4RH x 18mm solder socket
Input pressure gauge: 0 – 400/300 bar
Output pressure gauge: 0 – 16/10 bar
Blow-off valve with mounted Cu pipe bend (270°, 10x1 mm)
Width x Height x Depth: 160 x 326 x 108 mm
With manufacturer's declaration, operating instructions, shrink-wrapped in food-safe foil with sticker with Linde number/oil and fat-free on cardboard, individually packed in foamed cardboard, with Linde adhesive tape, "glass fork symbol" (according to Regulation (EC) 1935/2004, Annex II) on foil and cardboard, code letter "N".
The pressure reducer meets the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and the LFGB and is suitable for contact with food gases.
Factory certificate 2.2 and test report
With sticker, nameplate and warning “not for oxygen”
Linde Code:
32492254
Standard:
DIN EN ISO 7291
Switching:
Manual
Type of Gas:
Compressed Air (mixture)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 10 Bar
Flow rate:
90 Nm³/h
Inlet Connection:
M 24 x 1,5 RHk
Outlet Connection:
G 3/4 RH x 18mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
SS 316L
HP Gauge:
HP gauge scale:
300 Bar
LP Gauge:
LP gauge scale:
10 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
200 x 330 x 110 mmmm.
