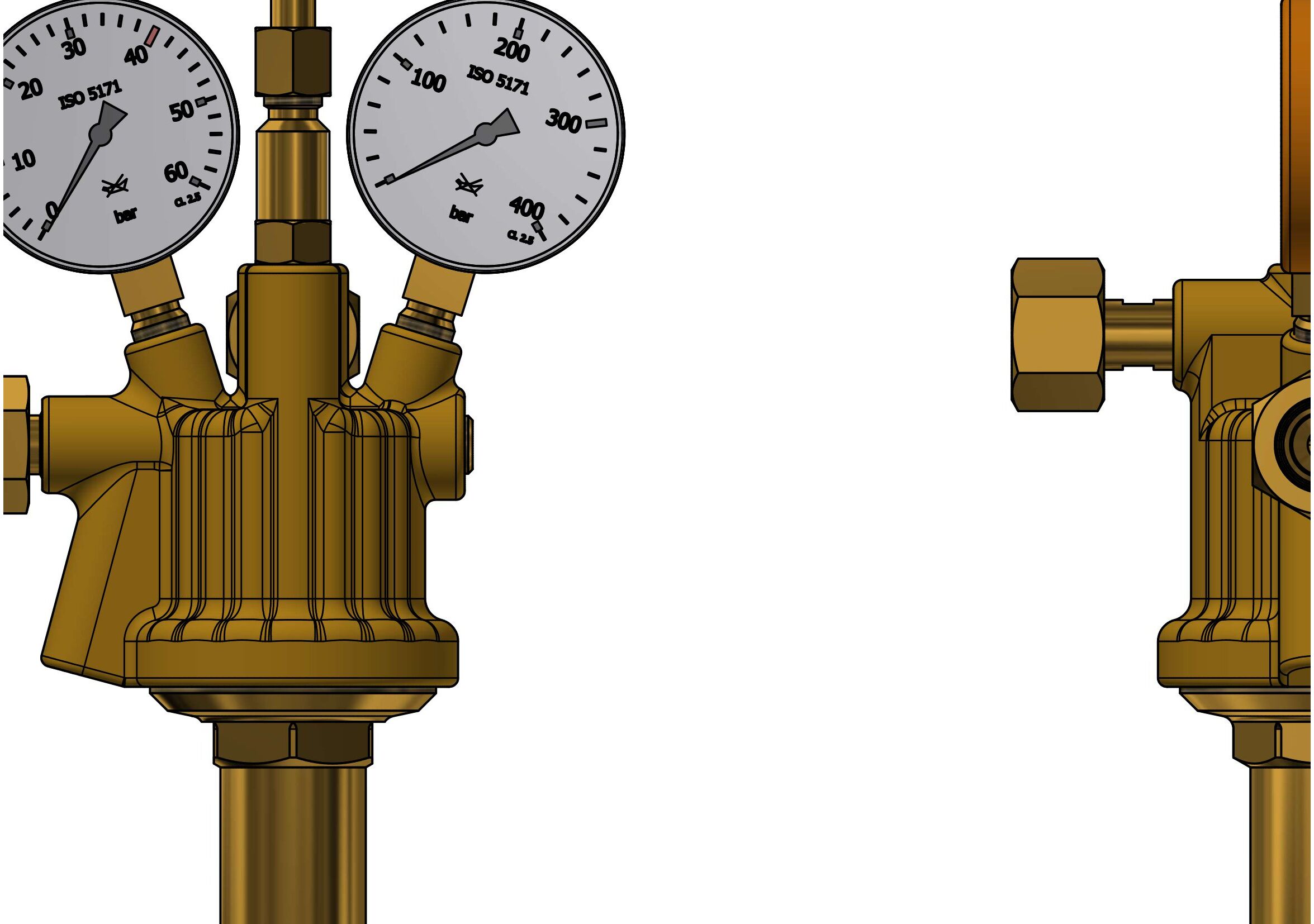

free of oil- and grease, for oxygen, acc. to ISO 7291 with metal diaphragm, single stage, adiabatic compression tested acc. to ISO7291, with safety gauges acc. to ISO 5171inlet pressure max: 300 bar
outlet pressure: 15 – 40 bar adjustable
flow max: 250 Nm³/h compr. air at 40 bar outlet pressure
inlet (on the back): M 24x1,5 RHk - S16 nut
outlet: G3/4RH x 18mm brazing connection
inlet gauge: 0 – 400/300 bar
working gauge: 0 – 60/40 bar
width x height x depth: 200 x 330 x 110 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "O", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
outlet pressure: 15 – 40 bar adjustable
flow max: 250 Nm³/h compr. air at 40 bar outlet pressure
inlet (on the back): M 24x1,5 RHk - S16 nut
outlet: G3/4RH x 18mm brazing connection
inlet gauge: 0 – 400/300 bar
working gauge: 0 – 60/40 bar
width x height x depth: 200 x 330 x 110 mm
With manufacturer's declaration, instruction manual, in food grade shrink wrap with sticker with Linde number / free of oil- and grease on box, individually wrapped in foam-lined box, with linde tape, "Glass-fork" symbol (according to Regulation (EC) 1935/2004, Annex II) on foil and box, code letter "O", additional sticker on foil: "No cost-free redemption when foil is damaged "
The regulator fulfills the requirements of Regulation (EC) 1935/2004, Regulation (EC) 2023/2006 and LFGB and is approved for contact with food suitable gases.
Test report and test report 2.2
Linde Code:
32492255
Standard:
ISO 7291
Switching:
Manual
Type of Gas:
Oxygen (O2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
300 Bar
Outlet pressure:
0 - 40 Bar
Flow rate:
250 Nm³/h
Inlet Connection:
M 24 x 1,5 RHk
Outlet Connection:
G 3/4 RH x 18mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
SS 316L
HP Gauge:
HP gauge scale:
300 Bar
LP Gauge:
LP gauge scale:
40 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
875 x 325 x 195 mmmm.
