Linde Pressure regulator F10/200 ´Biogon AC´ and ´Biogon C´

Linde
Write a review
Contact us for a price
Ask a question
32490035
acc to DIN EN ISO 2503, class 3, with high pressure compensation for constant working pressure, single stage, with shut off valve, with safety gauges acc. to ISO 5171inlet pressure max: 200 bar
outlet pressure: 0 – 10 bar adjustable
Flow max: 48 Nm³/h compressed air at 10 bar working pressure
inlet: W 21,8x1/14 RH Ü-Mutter nach DIN 477-1, No. 6
outlet:G 1/4 RHk x 6 mm tail-piece acc. to EN 560
inlet gauge: 0 – 315/200 bar
outlet gauge: 0 – 16/10 bar
width x hight x depth: 210 x 190 x 75 mm

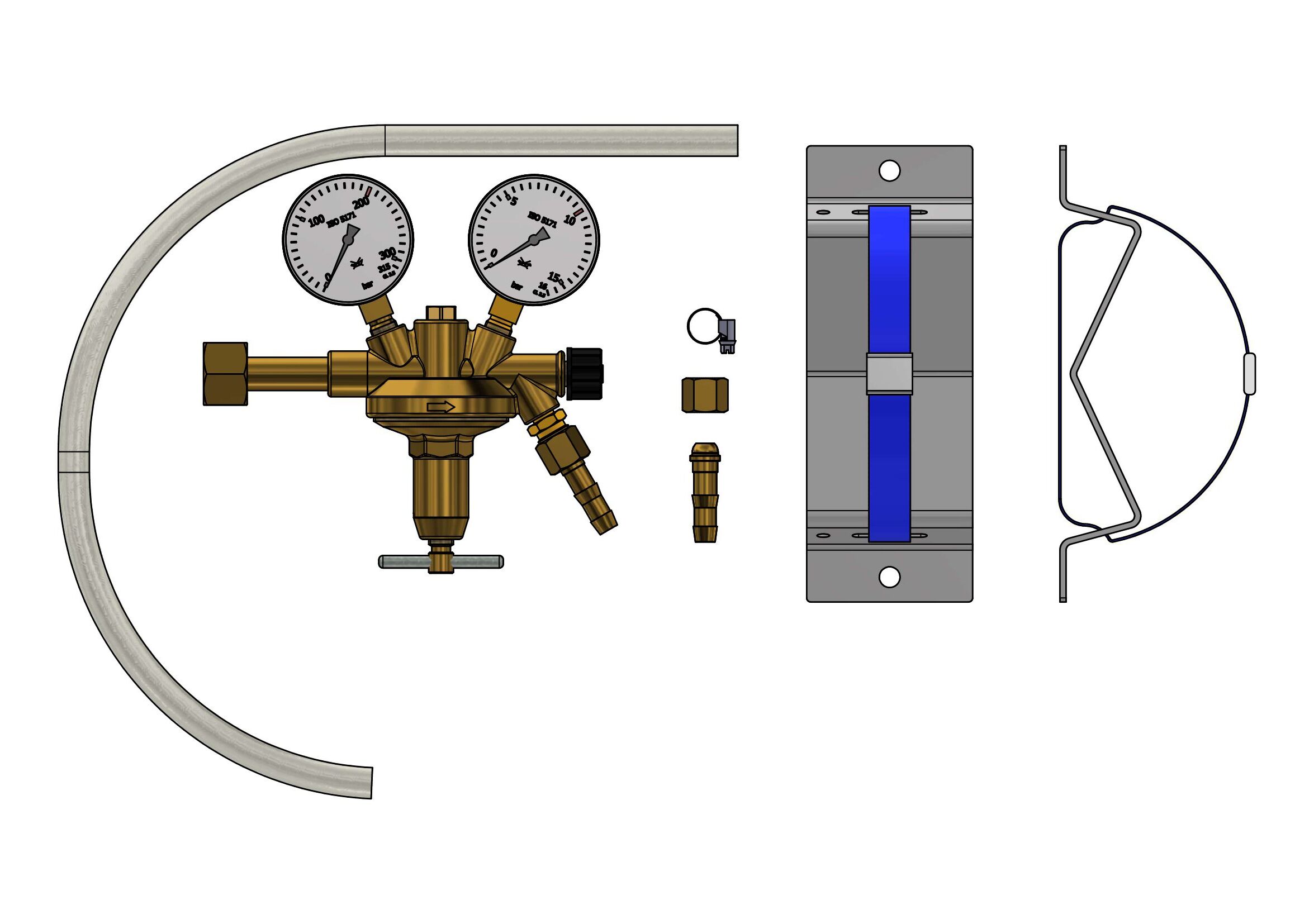

with metal diaphragm, 5m hose #400 206 01, 2 hose clamp VA #400 223, 1 tail piece #402 003, 1 nut #402 021, 1 cylinder rack #410 040 01, complete blistered with label "free of oil and grease" with operating manual Linde in box
Linde Code:
32490035
Standard:
DIN EN ISO 2503
Type of Gas:
Compressed Air (mixture)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 10 Bar
Flow rate:
48 Nm³/h
Inlet Connection:
W 21,8 x 1/14 RH
Outlet Connection:
G 1/4 RHk x 6mm
Application:
  • Automotive Industry
  • Cutting
  • Manufacturing Industry
  • Medical Technology
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
10 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
