acc to DIN EN ISO 2503, class 3, with high pressure compensation for constant working pressure, single stage, with shut off valve, with safety gauges acc. to ISO 5171inlet pressure max: 200 bar
outlet pressure: 0 – 10 bar adjustable
Flow max: 48 Nm³/h compressed air at 10 bar working pressure
inlet: G3/4 RH Ü-Mutter nach DIN 477-1, No. 9
outlet:G 1/4 RHk x 6 mm tail-piece acc. to EN 560
inlet gauge: 0 – 315/200 bar
outlet gauge: 0 – 16/10 bar
width x hight x depth: 210 x 190 x 75 mm

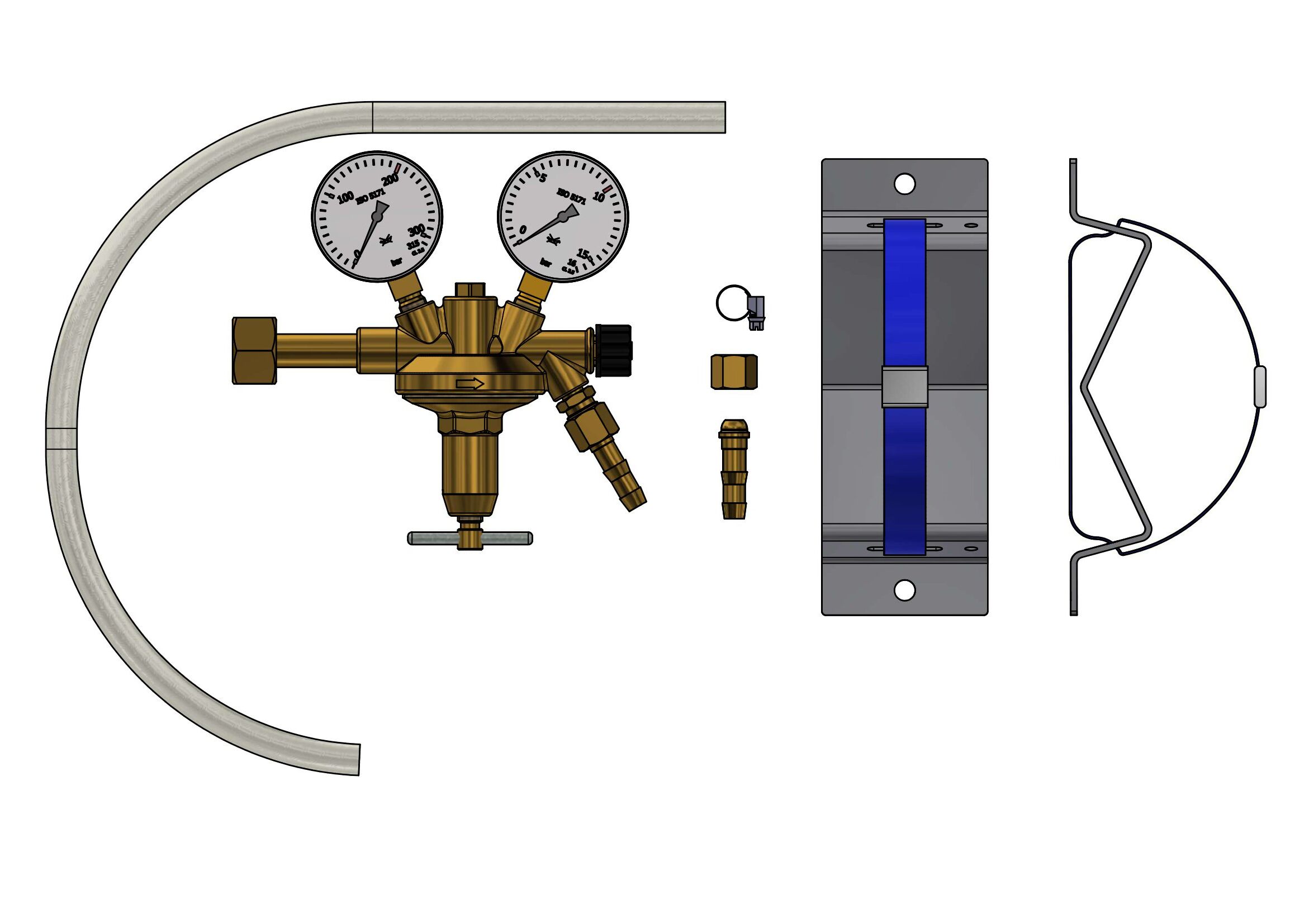

with metal diaphragm, 5m hose #400 206 01, 2 hose clamp VA #400 223, 1 tail piece #402 003, 1 nut #402 021, 1 cylinder rack #410 040 01, complete blistered with label "free of oil and grease" with operating manual Linde in box
outlet pressure: 0 – 10 bar adjustable
Flow max: 48 Nm³/h compressed air at 10 bar working pressure
inlet: G3/4 RH Ü-Mutter nach DIN 477-1, No. 9
outlet:G 1/4 RHk x 6 mm tail-piece acc. to EN 560
inlet gauge: 0 – 315/200 bar
outlet gauge: 0 – 16/10 bar
width x hight x depth: 210 x 190 x 75 mm
with metal diaphragm, 5m hose #400 206 01, 2 hose clamp VA #400 223, 1 tail piece #402 003, 1 nut #402 021, 1 cylinder rack #410 040 01, complete blistered with label "free of oil and grease" with operating manual Linde in box
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
48 Nm³/h
HP gauge scale:
200 Bar
Inlet Connection:
G 3/4 RH
Inlet pressure:
200 Bar
Linde Code:
32490098
LP Gauge:
LP gauge scale:
10 Bar
Material:
Brass
Outlet Connection:
G 1/4 RHk x 6mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Standard:
DIN EN ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Compressed Air (mixture)
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
