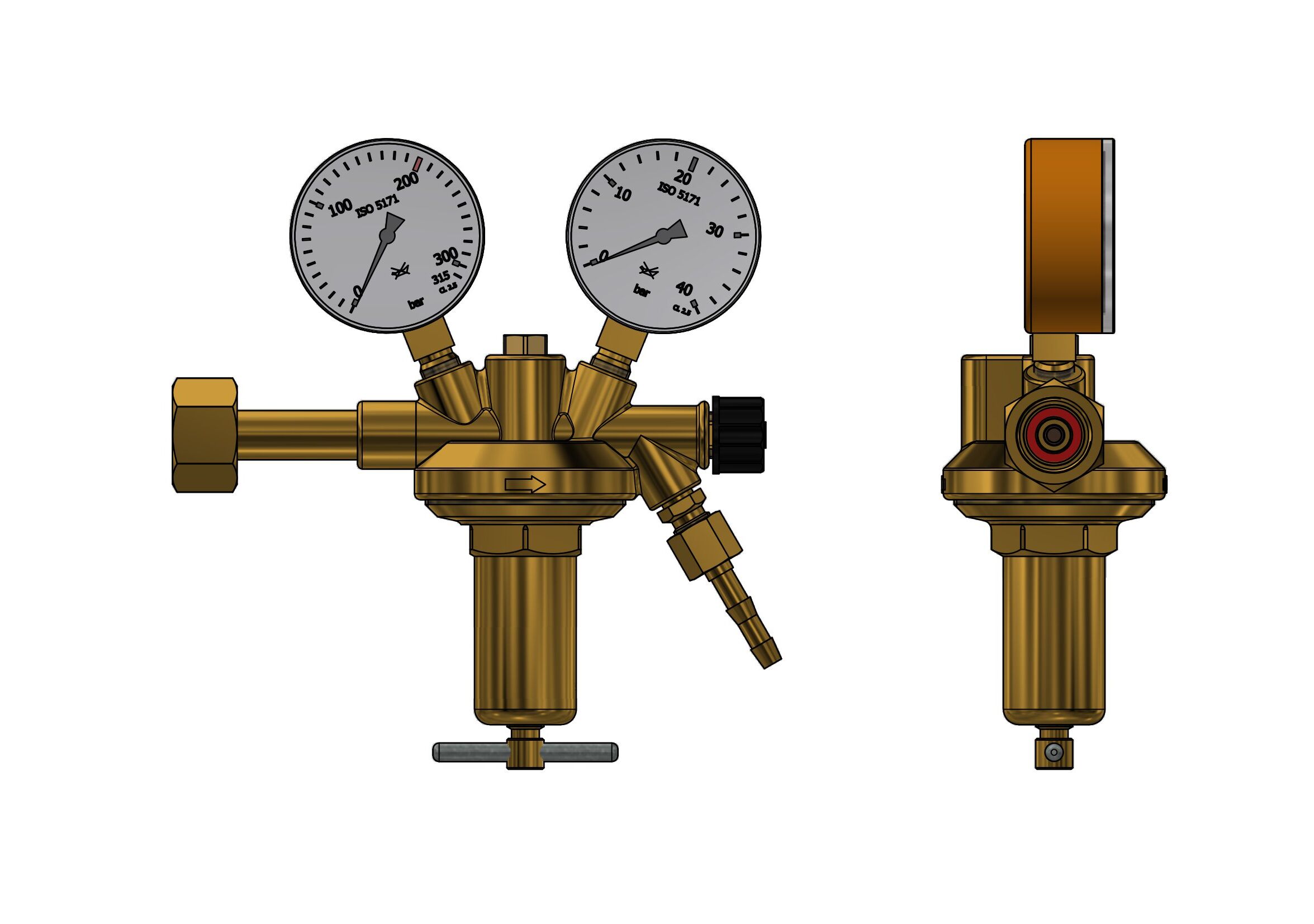

Linde Pressure regulator F20/200 FDR-200-20-75-Ar/CO2

Linde
Write a review
Ask a question
32492200
+ −
Buy now with 1-click

acc to DIN EN ISO 2503, class 5, single stage, with high pressure compensation for a constant working pressure on falling inlet pressure with safety gauges acc. to DIN ISO 5171inlet pressure max: 200 bar

outlet pressure: 0 – 20 bar adjustable

flow max: 75 Nm³/h at 20 bar working pressure

inlet connection: W21,8x1/14RHf nut acc. to DIN 477-1, no. 6

outlet connection: G 1/4RH x 6mm tail-piece

inlet gauge: 0 – 315 /200 bar

working gauge: 0 – 40/ 20 bar

width x height x depth: 210 x 210 x 75 mm

Linde Code:
32492200
Standard:
DIN EN ISO 2503
Type of Gas:
Argon (Ar)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 20 Bar
Flow rate:
75 Nm³/h
Inlet Connection:
W 21,8 x 1/14 RHf
Outlet Connection:
G 1/4 RH x 6mm
Application:
  • Automotive Industry
  • Cutting
  • Manufacturing Industry
  • Medical Technology
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
20 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 210 x 75 mmmm.
