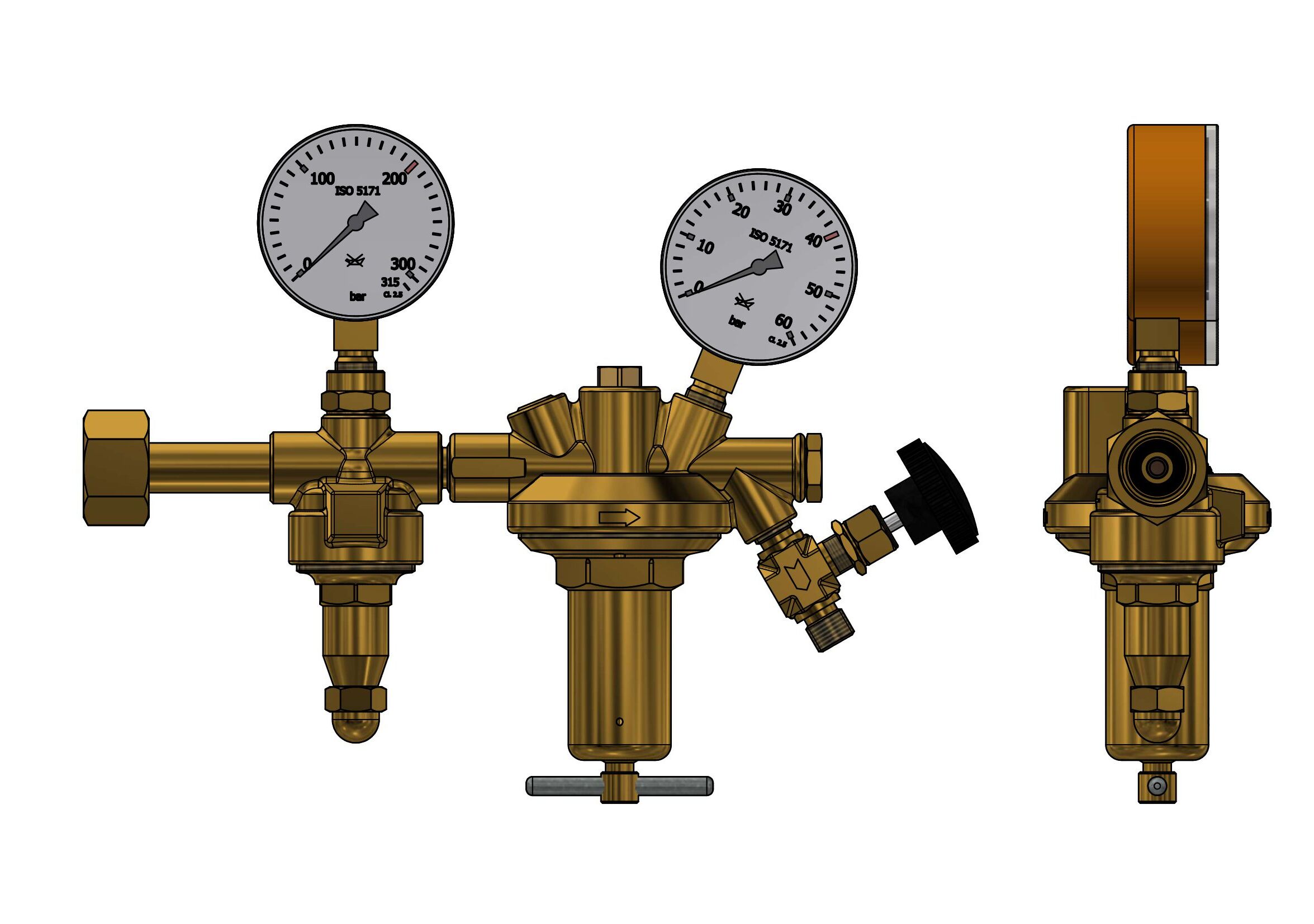

according to DIN EN ISO 2503, with inlet pressure compensation for constant downstream pressure when the inlet pressure falls, with safety pressure gauges in accordance with ISO 5171, with shut-off valveInput pressure max: 200 bar
Output pressure: 0 – 30.0 bar
Performance: 40 Nm³/h compressed air at 30 bar back pressure
Input: W 24.32x1/14 RH Ü-nut according to DIN 477-1, No. 10
Output: G 3/8 RHk x 9 mm hose nozzle according to EN 560
Input pressure gauge: 0 – 315/200 bar
Output pressure gauge: 0 - 60/40 bar
Width x Height x Depth: 210 x 230 x 75 mm
with Linde logo on the housing, with Linde operating instructions and Linde adhesive tape
Output pressure: 0 – 30.0 bar
Performance: 40 Nm³/h compressed air at 30 bar back pressure
Input: W 24.32x1/14 RH Ü-nut according to DIN 477-1, No. 10
Output: G 3/8 RHk x 9 mm hose nozzle according to EN 560
Input pressure gauge: 0 – 315/200 bar
Output pressure gauge: 0 - 60/40 bar
Width x Height x Depth: 210 x 230 x 75 mm
with Linde logo on the housing, with Linde operating instructions and Linde adhesive tape
Linde Code:
32491052
Standard:
EN ISO 2503
Type of Gas:
Compressed Air (mixture)
Product type:
Cylinder regulators
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 30 Bar
Flow rate:
40 Nm³/h
Inlet Connection:
W 24,32 x 1/14 RH
Outlet Connection:
G 3/8 RHk x 9mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
40 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
