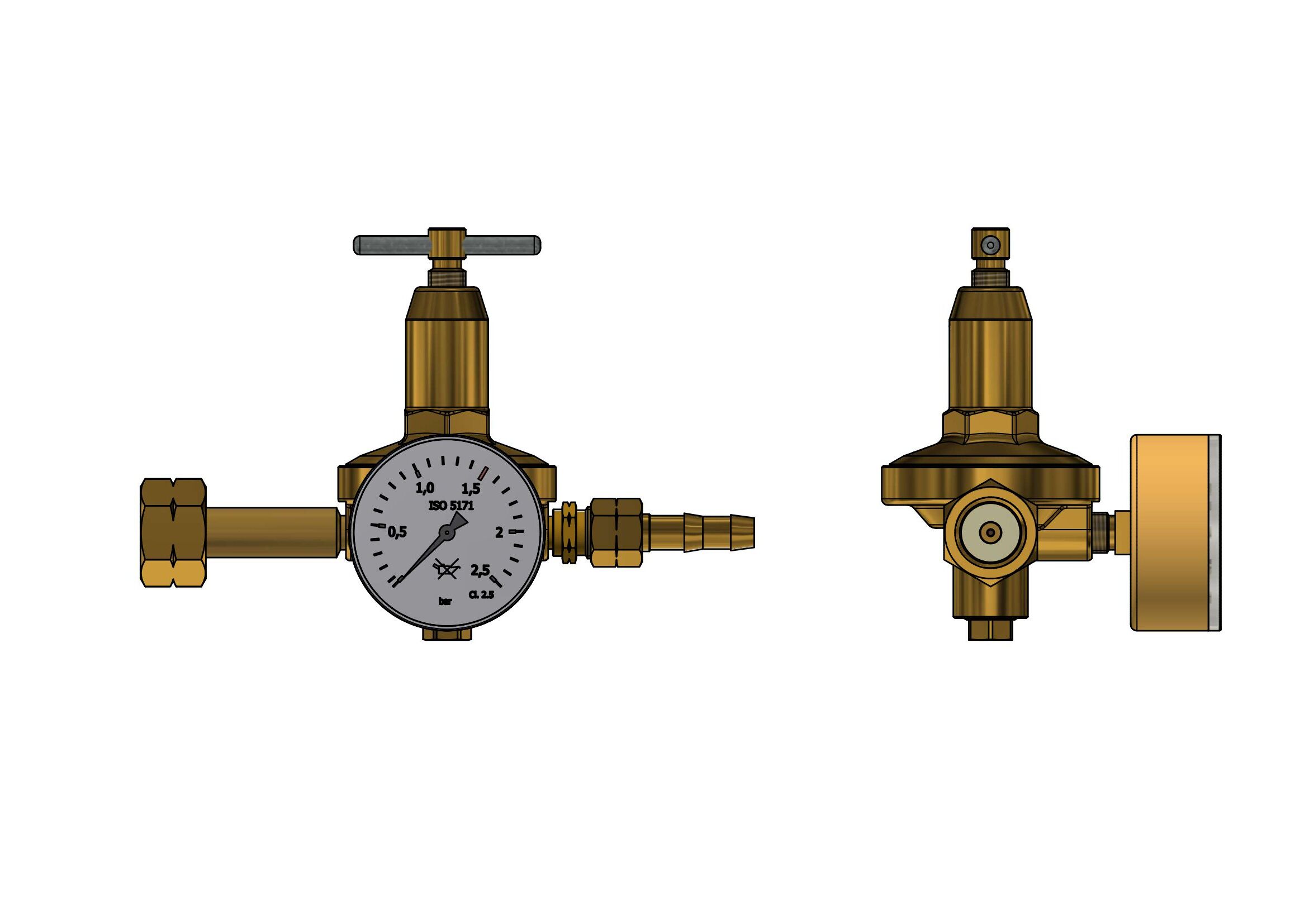

single stage with safety gauge acc. to ISO 5171, inlet pressure max: 20 bar
outlet pressure: 0 – 4 bar adjustable
flow max: 10 kg/h at 4 bar working pressure
inlet: W 21,8x1/14 LH nut acc. to DIN 477
outlet: G 3/8 LHk x 9 mm tail-piece EN 560
outlet gauge: 0 – 6/4 bar
width x height x depth: 198 x 134 x 75 mm
with Linde-Logo on body, with Linde-tape and Linde operating manual
outlet pressure: 0 – 4 bar adjustable
flow max: 10 kg/h at 4 bar working pressure
inlet: W 21,8x1/14 LH nut acc. to DIN 477
outlet: G 3/8 LHk x 9 mm tail-piece EN 560
outlet gauge: 0 – 6/4 bar
width x height x depth: 198 x 134 x 75 mm
with Linde-Logo on body, with Linde-tape and Linde operating manual
Linde Code:
32492236
Standard:
ISO 5171
Type of Gas:
Propane (C3H8)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
20 Bar
Outlet pressure:
0 - 4 Bar
Flow rate:
1 Nm³/h
Inlet Connection:
W 21,8 x 1/14 LH
Outlet Connection:
G 3/8 LHk x 9mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
LP Gauge:
LP gauge scale:
4 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
