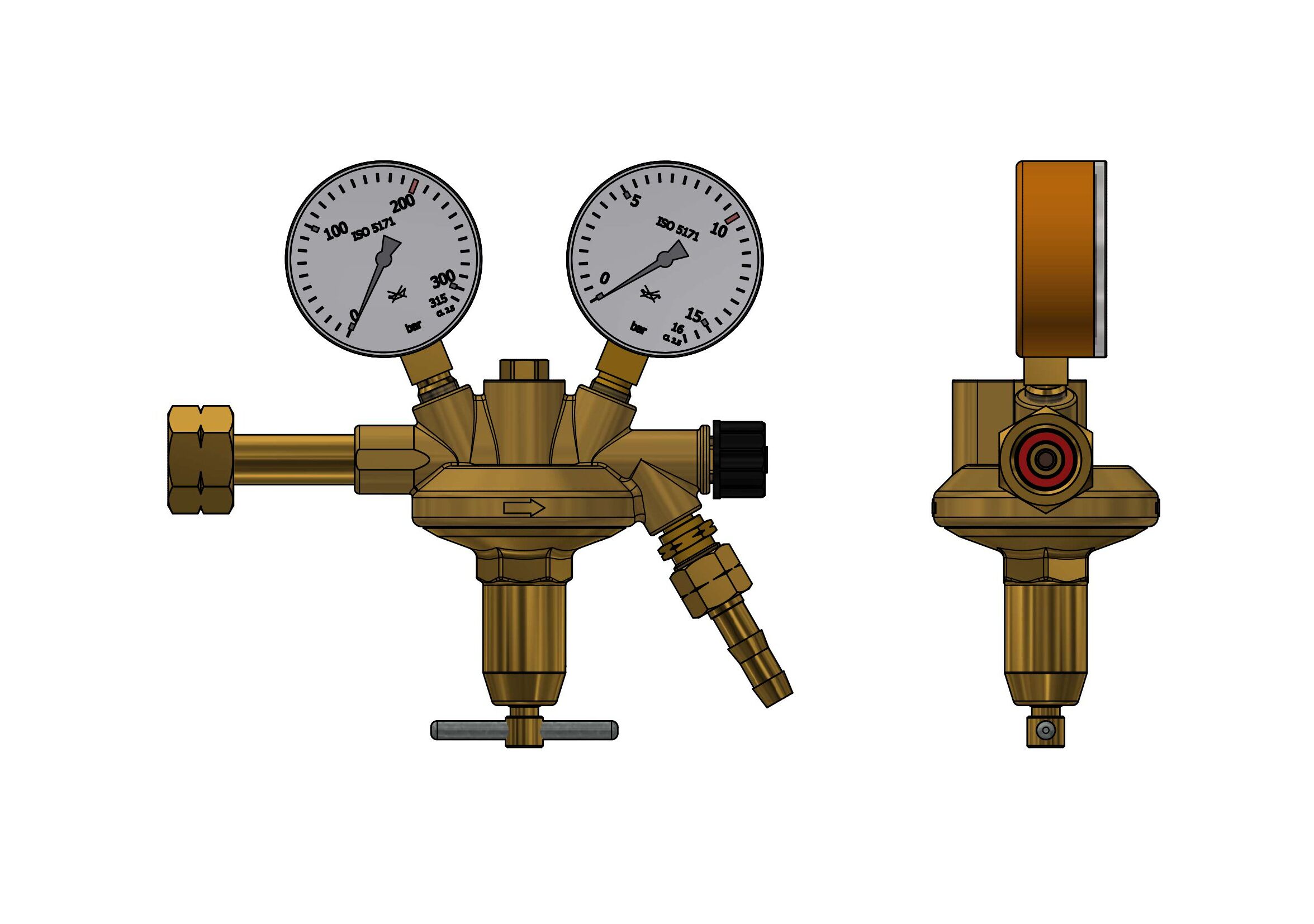

acc. to ISO 2503, class 3, single stage, with safety gauges acc. to ISO 5171, with shut off valve,inlet pressure max.: 200 bar
outlet pressure: 0 – 10 bar adjustable
flow max.: 48 Nm³/h air at 10 bar working pressure
Inlet connection: W21,8x1/14LH nut acc. to DIN 477-1, no. 1
outlet connection:G 3/8 RHk x 9 mm tailpiece acc. to EN 560
inlet gauge: 0 - 315/200 bar
working gauge: 0 - 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 0 – 10 bar adjustable
flow max.: 48 Nm³/h air at 10 bar working pressure
Inlet connection: W21,8x1/14LH nut acc. to DIN 477-1, no. 1
outlet connection:G 3/8 RHk x 9 mm tailpiece acc. to EN 560
inlet gauge: 0 - 315/200 bar
working gauge: 0 - 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32490579
Standard:
ISO 2503
Type of Gas:
Hydrogen (H2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 10 Bar
Flow rate:
48 Nm³/h
Inlet Connection:
W 21,8 x 1/14 LH
Outlet Connection:
G 3/8 RHk x 9mm
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
10 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
