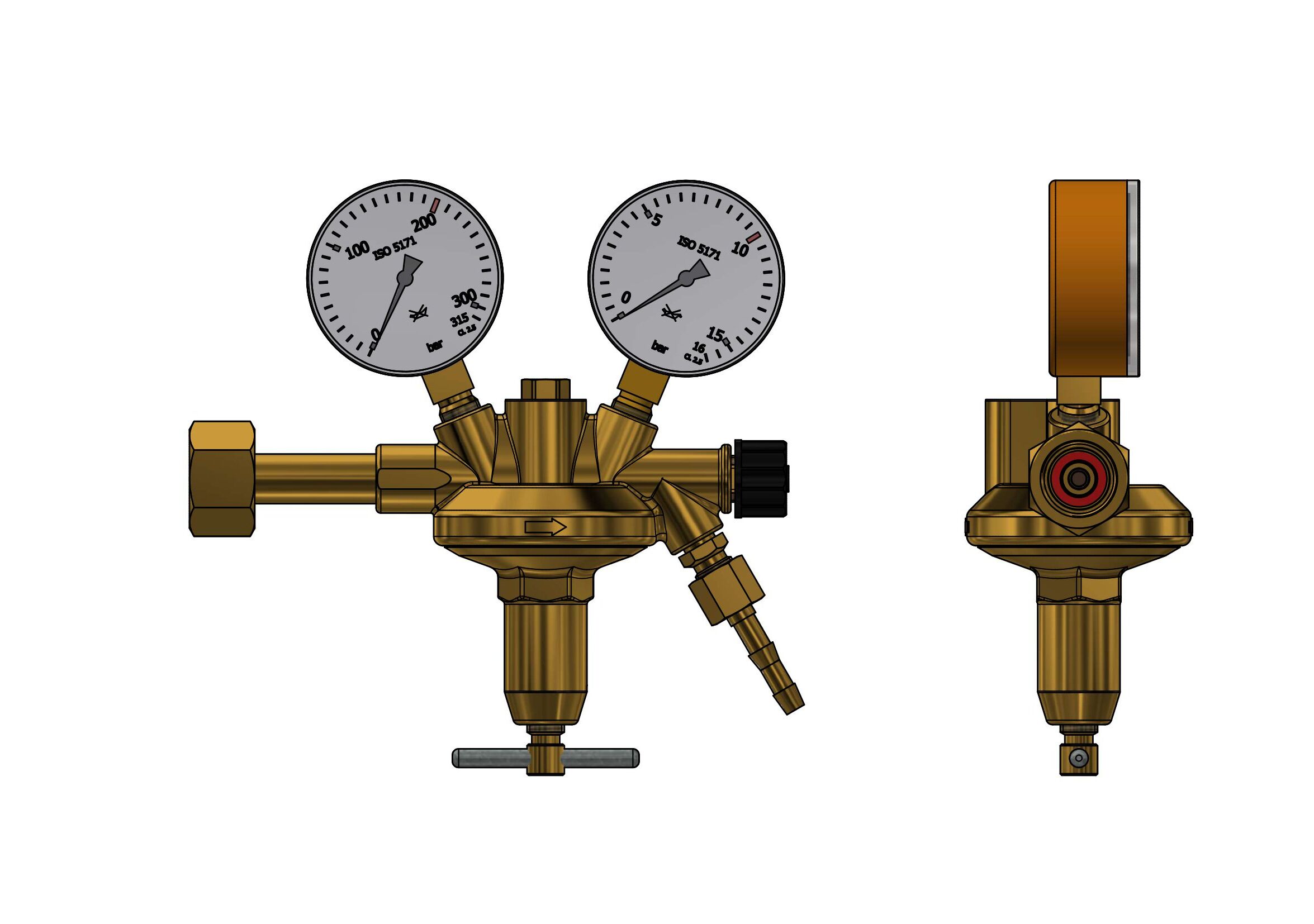

acc to DIN EN ISO 2503, class 3, single stage, with safety gauges acc. to DIN ISO 5171,
with shut off valve
inlet pressure max:200 bar
outlet pressure: 0 – 10 bar adjustable
flow max:48 Nm³/h air at 10 bar outlet pressure
inlet connection: W 24,32x1/14 RH nut acc. to DIN 477-1, no. 10
outlet connection: G 1/4RH x 6mm tail-piece acc. EN560
inlet gauge: 0 – 315 /200 bar
working gauge: 0 – 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
with shut off valve
inlet pressure max:200 bar
outlet pressure: 0 – 10 bar adjustable
flow max:48 Nm³/h air at 10 bar outlet pressure
inlet connection: W 24,32x1/14 RH nut acc. to DIN 477-1, no. 10
outlet connection: G 1/4RH x 6mm tail-piece acc. EN560
inlet gauge: 0 – 315 /200 bar
working gauge: 0 – 16/10 bar
width x height x depth: 210 x 190 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
48 Nm³/h
HP gauge scale:
200 Bar
Inlet Connection:
W 24,32 x 1/14 RH
Inlet pressure:
200 Bar
Linde Code:
32490536
LP Gauge:
LP gauge scale:
10 Bar
Material:
Brass
Outlet Connection:
G 1/4 RH x 6mm
Outlet pressure:
10 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Standard:
DIN EN ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
