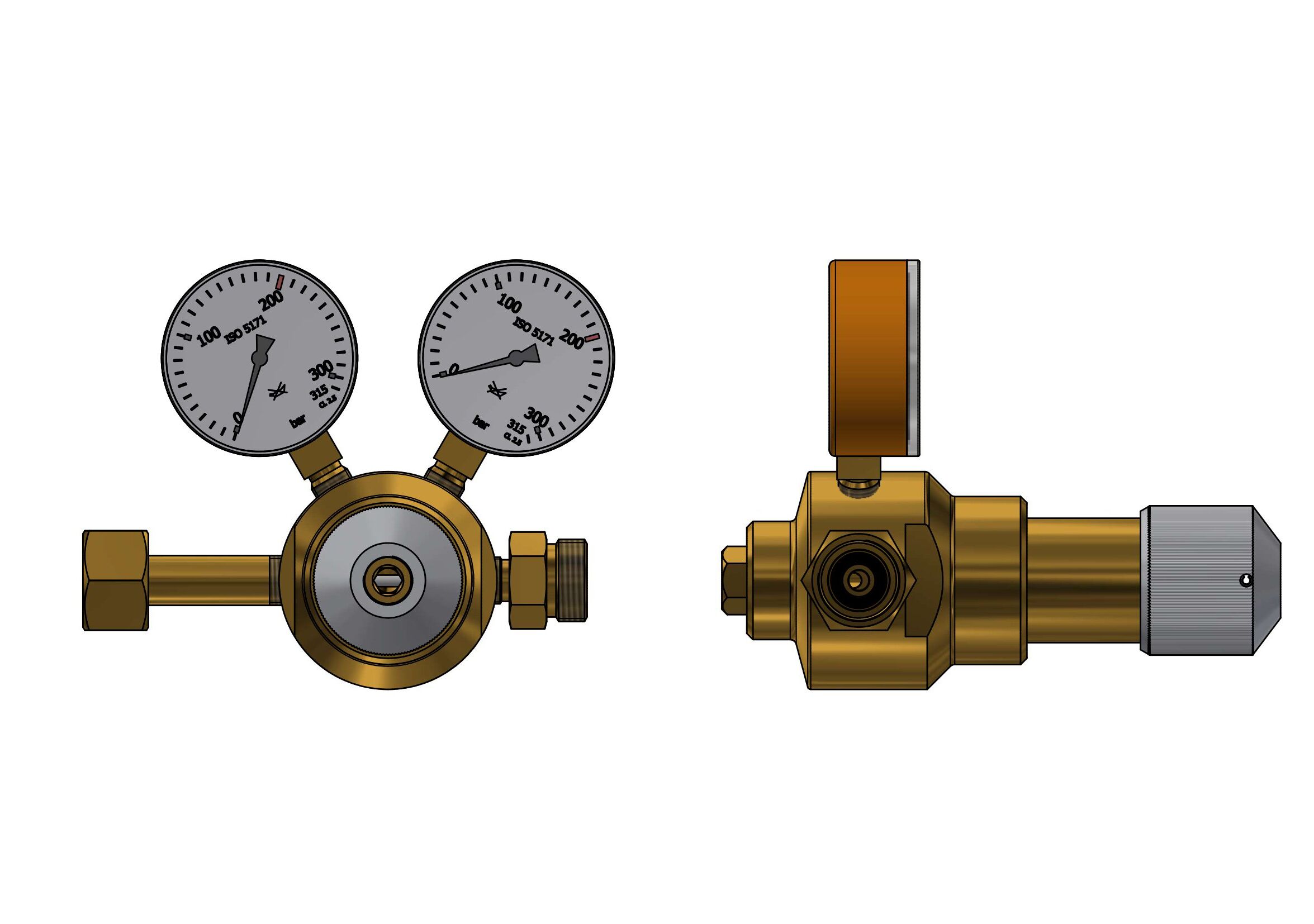

Linde Pressure regulator FDR-200-200-380-O2

Linde
Write a review
Ask a question
32492216
+ −
Buy now with 1-click
acc. to ISO 2503, single stage with safety gauges acc. to ISO 5171inlet pressure max:200 bar
outlet pressure: 10 - 200 bar adjustable
flow max: 380 Nm³/h at 50 bar outlet pressure
inlet connection: G3/4 RH nut acc. to DIN 477-1, no. 9
outlet connection: G 3/4 RH male acc. to DIN 477-1, no. 9
inlet gauge: 0 – 315/200 bar
working gauge: 0 – 315/200 bar
width x height x depth: 150 x 210 x 120 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32492216
Standard:
ISO 2503
Type of Gas:
Oxygen (O2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 200 Bar
Flow rate:
380 Nm³/h
Inlet Connection:
G 3/4 RH
Outlet Connection:
G 3/4 RH
Application:
  • Automotive Industry
  • Cutting
  • Manufacturing Industry
  • Medical Technology
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
200 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 190 x 75 mmmm.
