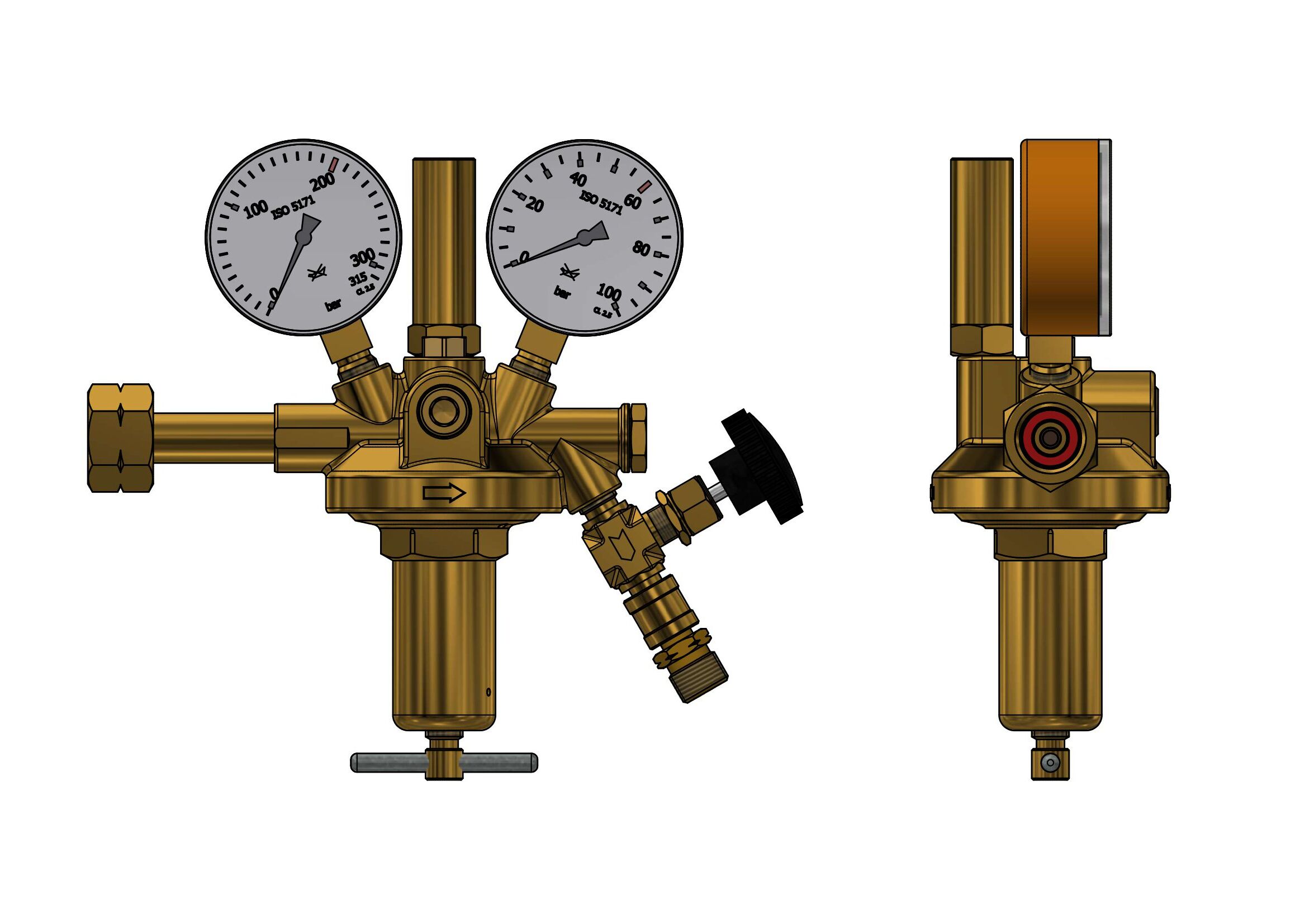

acc to DIN EN ISO 2503, single stage, with high pressure compensation for a constant working pressure on falling inlet pressure with safety gauges acc. to DIN ISO 5171inlet pressure max:200 bar
outlet pressure: 0 – 60 bar adjustable
flow max: 140 Nm³/h at 60 bar working pressure
inlet connection: W21,8x1/14LHf nut acc. to DIN 477-1, no. 1
outlet connection: G 3/8LHak acc. to EN560
inlet gauge: 0 – 315/200 bar
working gauge: 0 – 100/60 bar
width x height x depth: 210 x 210 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 0 – 60 bar adjustable
flow max: 140 Nm³/h at 60 bar working pressure
inlet connection: W21,8x1/14LHf nut acc. to DIN 477-1, no. 1
outlet connection: G 3/8LHak acc. to EN560
inlet gauge: 0 – 315/200 bar
working gauge: 0 – 100/60 bar
width x height x depth: 210 x 210 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
140 Nm³/h
HP gauge scale:
200 Bar
Inlet Connection:
W 21,8 x 1/14 LH
Inlet pressure:
200 Bar
Linde Code:
32492245
LP Gauge:
LP gauge scale:
60 Bar
Material:
Brass
Outlet Connection:
G 3/8 LHak
Outlet pressure:
60 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Standard:
DIN EN ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Hydrogen (H2)
W (Width) x H (Height) x D (Depth):
210 x 210 x 75 mmmm.
