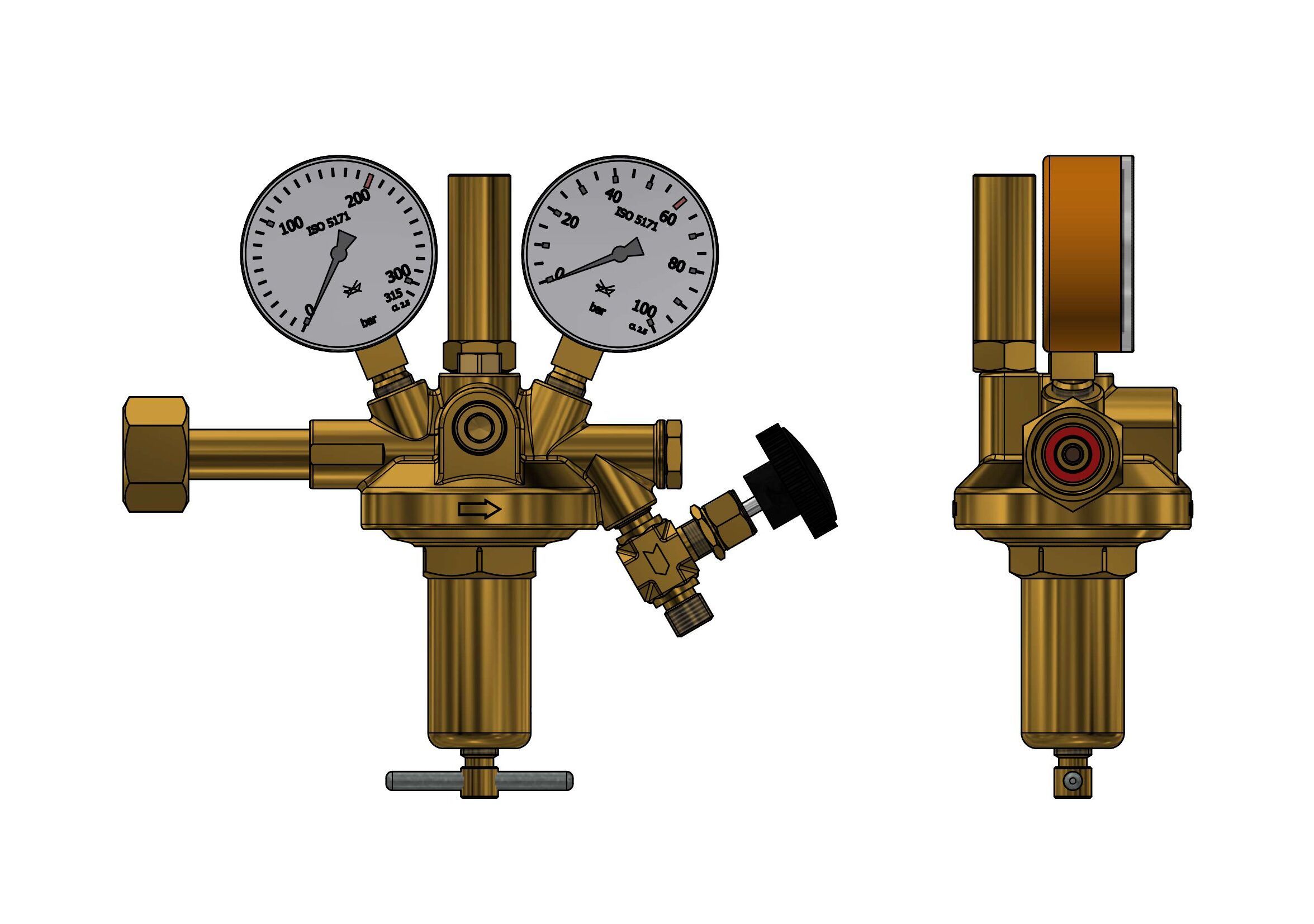

acc to DIN EN ISO 2503, single stage, with high pressure compensation for a constant working pressure on falling inlet pressure, with metal diaphragm, with safety gauges acc. to DIN ISO 5171inlet pressure max: 200 bar
outlet pressure: 0 – 60 bar adjustable
flow max:140 Nm³/h at 60 bar working pressure
inlet connection: G3/4 RHf nut acc. to DIN 477-1, no. 9
outlet connection: G 1/4RHak acc. to EN560
inlet gauge: 0 – 315/200 bar
working gauge: 0 – 100/60 bar
width x height x depth: 210 x 210 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 0 – 60 bar adjustable
flow max:140 Nm³/h at 60 bar working pressure
inlet connection: G3/4 RHf nut acc. to DIN 477-1, no. 9
outlet connection: G 1/4RHak acc. to EN560
inlet gauge: 0 – 315/200 bar
working gauge: 0 – 100/60 bar
width x height x depth: 210 x 210 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Linde Code:
32492213
Standard:
DIN EN ISO 2503
Type of Gas:
Oxygen (O2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 60 Bar
Flow rate:
140 Nm³/h
Inlet Connection:
G 3/4 RHf
Outlet Connection:
G 1/4 RHak
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Material:
Brass
Relief valve:
Y
Diaphragm Material:
EPDM
HP Gauge:
HP gauge scale:
200 Bar
LP Gauge:
LP gauge scale:
60 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
210 x 210 x 75 mmmm.
