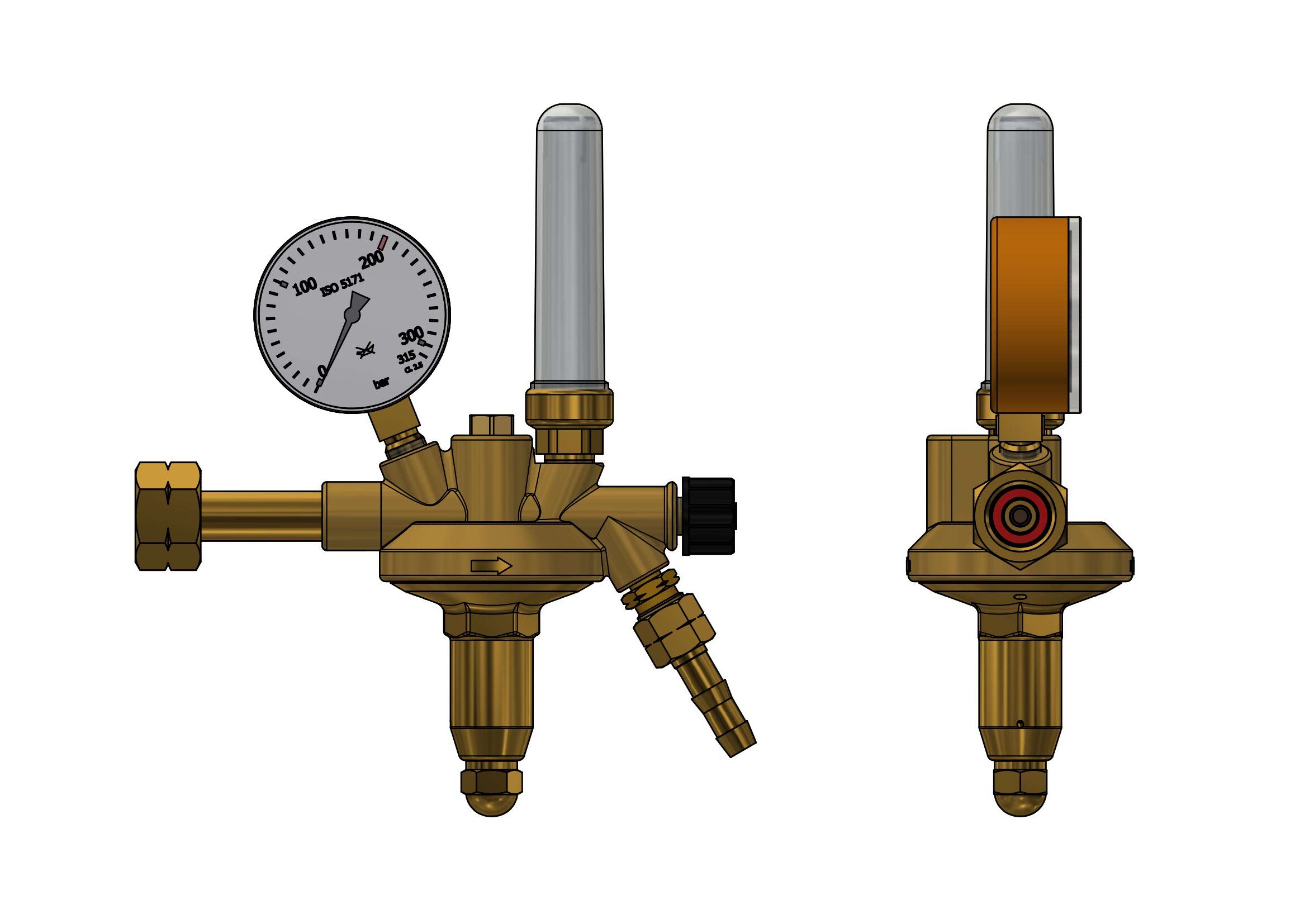

acc to DIN EN ISO 2503, class 10, single stage with flowmeter, with high pressure compensation for a constant working pressure on falling inlet pressure with safety gauges acc. to DIN ISO 5171inlet pressure max: 200 bar
outlet pressure: 1,5 bar fixed
flow: 2,0 - 23,0 Nl/min. forming gas adjustable
Inlet connection: W 21,8x1/14 LH nut acc. to DIN 477-1, no. 1
outlet connection: G 3/8 LHk x 9mm tailpiece EN 560
inlet gauge: 0 – 315/200 bar
width x height x depth: 210 x 230 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
outlet pressure: 1,5 bar fixed
flow: 2,0 - 23,0 Nl/min. forming gas adjustable
Inlet connection: W 21,8x1/14 LH nut acc. to DIN 477-1, no. 1
outlet connection: G 3/8 LHk x 9mm tailpiece EN 560
inlet gauge: 0 – 315/200 bar
width x height x depth: 210 x 230 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flowmeter:
HP gauge scale:
200 Bar
Inlet Connection:
W 21,8 x 1/14 LH
Inlet pressure:
200 Bar
Linde Code:
32490145
Material:
Brass
Outlet Connection:
G 3/8 LHk x 9mm
Outlet pressure:
1,5 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Standard:
DIN EN ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Forming gases (mixture)
W (Width) x H (Height) x D (Depth):
210 x 230 x 75 mmmm.
