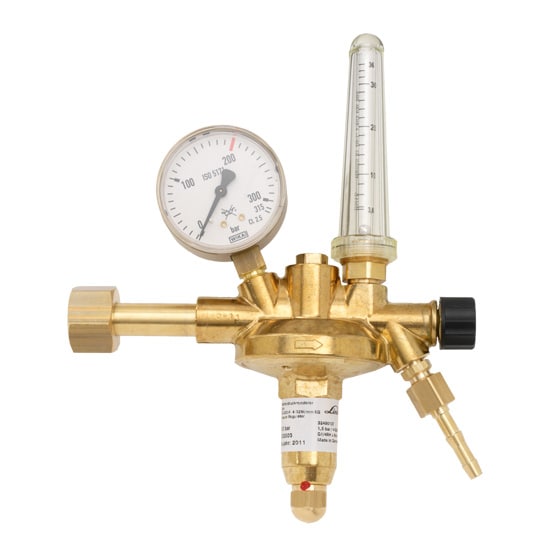

Linde Pressure regulator FDR-200-F-50-N2

Linde
Write a review
Ask a question
32492241
+ −
Buy now with 1-click

acc to ISO 2503, class 20, single stage, with flowmeter for exact control of the flow in Nl/min, with high pressure compensation for constant working pressure with safety gauge acc. to ISO 5171, with shut off valveinlet pressure max: 200 bar

outlet pressure: 4,5 bar pre adjusted

flow: 5,0 – 50,0 Nl/min. adjustable

inlet: W 24,32x1/14 RH nut acc. to DIN 477-1

outlet: G 1/4 RHk x 6 mm tail-piece acc. EN 560

inlet gauge: 0 – 315/200 bar

width x height x depth:: 210 x 230 x 75 mm



replaces item 223615

Linde Code:
32492241
Standard:
ISO 2503
Type of Gas:
Nitrogen (N2)
Product type:
Cylinder regulators
Regulation Type:
Single stage
Inlet pressure (max):
200 Bar
Outlet pressure:
0 - 4,5 Bar
Flow rate:
5 Nm³/h
Inlet Connection:
W 24,32 x 1/14 RH
Outlet Connection:
G 1/4 RHk x 6mm
Application:
  • Automotive Industry
  • Cutting
  • Manufacturing Industry
  • Medical Technology
  • Petrochemical Industry
  • Pharmaceutical Industry
  • Research & Development
  • Welding
Class (purpose):
  • Technical gases
Material:
Brass
Relief valve:
Y
Shut off valve:
Y
Diaphragm Material:
EPDM
Flowmeter:
Y
HP Gauge:
HP gauge scale:
200 Bar
Temperature range:
-20 up to +60 °C
W (Width) x H (Height) x D (Depth):
250 x 230 x 130 mmmm.
