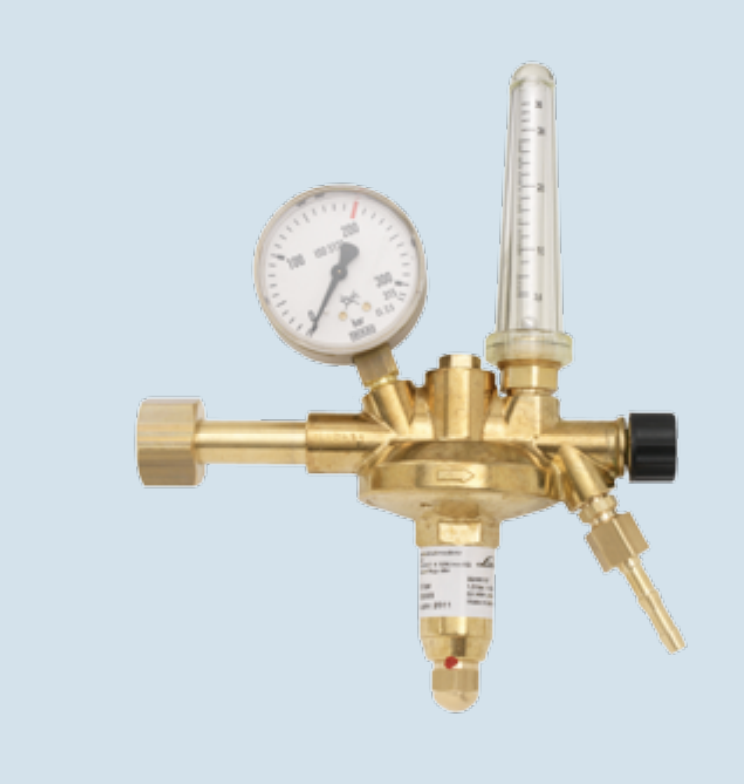

acc to DIN EN ISO 2503, class 10, single stage, with flowmeter for exact control of the flow in Nl/min, with high pressure compensation for constant working pressure with safety gauge acc. to ISO 5171, with shut off valveinlet pressure max: 200 bar
outlet pressure: 4 bar pre adjusted
flow: 8,5 - 85 Nl/min. adjustable
inlet: W 24,32x1/14 RH nut acc. to DIN 477-1, no. 10
outlet: G 1/4 RHk x 6 mm tail-piece acc. EN 560
inlet gauge: 0 – 315/200 bar
width x height x depth:: 210 x 230 x 75 mm
with Linde-Logo stamped on body, with Linde operating manual and Linde adhesive tape
Application:
- Automotive Industry
- Cutting
- Manufacturing Industry
- Medical Technology
- Petrochemical Industry
- Pharmaceutical Industry
- Research & Development
- Welding
Class (purpose):
- Technical gases
Diaphragm Material:
EPDM
Flow rate:
5 Nm³/h
Flowmeter:
HP gauge scale:
200 Bar
Inlet Connection:
W 24,32 x 1/14 RH
Inlet pressure:
200 Bar
Linde Code:
32490323
Material:
Brass
Outlet Connection:
G 1/4 RHk x 6mm
Outlet pressure:
4 Bar
Product type:
Cylinder regulators
Regulation Type:
Single stage
Relief valve:
Shut off valve:
Standard:
DIN EN ISO 2503
Temperature range:
-20 up to +60 °C
Type of Gas:
Nitrogen (N2)
W (Width) x H (Height) x D (Depth):
210 x 230 x 75 mmmm.
